6.0 dB Max

Capabilities

Frequency range:

Bandwidth:

Standard Frequencies:

Types:

Transfer Functions:

Poles:

Packages:

Power:

Applications:

0 products found.

Model Number

Frequency

Pass Bandwidth

Stop Bandwidth

Insertion Loss

Ripple

Case

CF-18000256

Frequency

1800 MHz

Pass Bandwidth

25 MHz +/- 20% / 3 dB Nom

Stop Bandwidth

55 MHz / 20 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

26.5 x 14 x 5.5 mm (SMD)

CF-21550256Q

Frequency

2155 MHz

Pass Bandwidth

25 MHz / 3 dB Max

Stop Bandwidth

90 MHz / 40 dB Min // 125 MHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

38.0 x 16.0 x 8.0 mm (SMD)

CF-22000166

Frequency

2200 MHz

Pass Bandwidth

16 MHz / 1.0 dB Max

Stop Bandwidth

100 MHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

26.5 x 14 x 5.5 mm (SMD)

CF-24000105

Frequency

2400 MHz

Pass Bandwidth

10 MHz / 1.0 dB Max

Stop Bandwidth

140 MHz / 50 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

17.28 x 12 x 4.5 mm (SMD)

CF-45600705A

Frequency

4560 MHz

Pass Bandwidth

70 MHz ±15% / 1.0 dBc Max

Stop Bandwidth

160 MHz / 20 dB Min // 2 GHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

Case

17.28 x 13 x 4.5 mm (SMD)

FN-1070W

Frequency

455 KHz

Pass Bandwidth

1000~1250Hz / 3.0 dB Max

Stop Bandwidth

2000 Hz / 50 dB min

Insertion Loss

6.0 dB Max

Ripple

2.0 dB Max

Case

Various (download the pdf sheet for details)

FN-1195W

Frequency

60 MHz

Pass Bandwidth

100 KHz / 3 dB Max

Stop Bandwidth

600 KHz / 40 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

Various (download the pdf sheet for details)

FN-159W

Frequency

250 KHz

Pass Bandwidth

3.4 KHz / 3 dB Max

Stop Bandwidth

12.5 KHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

0.3 dB Max

Case

Various (download the pdf sheet for details)

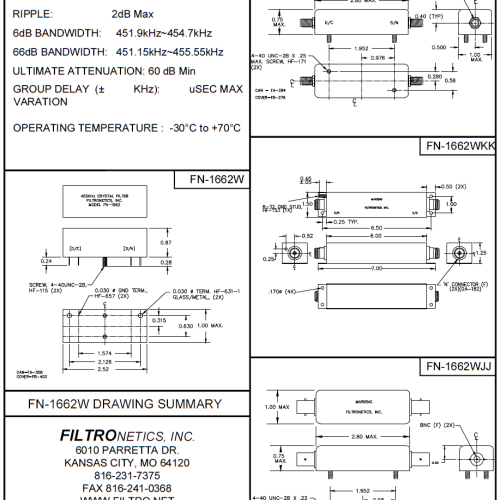

FN-1662W

Frequency

453.3 kHz

Pass Bandwidth

451.9~454.7 kHz / 6.0 dB Max

Stop Bandwidth

455 kHz / 66 dB Min // 451.1 kHz / 66 dB Min // 455.55 kHz / 66dB Min

Insertion Loss

6.0 dB Max

Ripple

Case

Various (download the pdf sheet for details)

FN-1784W

Frequency

10.7 MHz

Pass Bandwidth

30 KHz / 3 dB Max

Stop Bandwidth

'-150,+120 KHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

0.25 dB Max

Case

1.25 x 0.75 x 0.70 in (Thru hole)

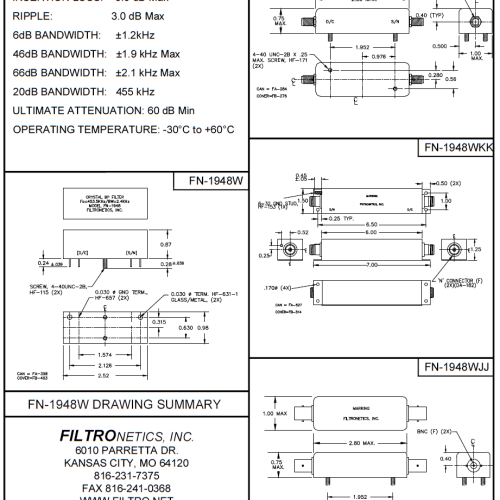

FN-1948W

Frequency

453.5 kHz

Pass Bandwidth

±1.2 kHz / 6.0 dB Max

Stop Bandwidth

±1.9 kHz / 46 dB Min // ±2.1 kHz / 66 dB Min // 455kHz+ / 20 dB Min

Insertion Loss

6.0 dB Max

Ripple

3.0 dB Max

Case

Various (download the pdf sheet for details)

FN-1966W

Frequency

470 kHz

Pass Bandwidth

300 Hz / 3.0 dB Max

Stop Bandwidth

± 1.5 kHz / 70 dB Min

Insertion Loss

6.0 dB Max

Ripple

Case

Various (download the pdf sheet for details)

FN-1980W

Frequency

45 MHz

Pass Bandwidth

100 KHz / 3 dB Max

Stop Bandwidth

300 KHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

1.38 x 0.65 x 0.65 in (Thru hole)

FN-2176W

Frequency

641 MHz

Pass Bandwidth

2 MHz / 0.5 dB Max // 10 MHz / 3.0 dB Max

Stop Bandwidth

Fo-88 MHz / 85 dB Min // Fo+88 MHz / 80 dB Min // 90 MHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

0.1 dB Max

Case

2.37 x 1.00 x 0.74 in (SMA)

FN-2437W

Frequency

70 MHz

Pass Bandwidth

350 KHz / 3 dB Max

Stop Bandwidth

±500 KHz / 20 dB Min // ±1 MHz / 40 dB Min // ±1.75 MHz / 50 dB Min // ±3.5 MHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

Case

Various (download the pdf sheet for details)

FN-3226W

Frequency

170 MHz

Pass Bandwidth

50 KHz / 3 dB Max

Stop Bandwidth

200 KHz / 40 dB Min

Insertion Loss

6.0 dB Max

Ripple

0.75 dB Max

Case

Various (download the pdf sheet for details)
