FN-1948W

Name: FN-1948W - Filtronetics
SKU: FN-1948W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-1948W

Frequency

453.5 kHz

Insertion Loss

6.0 dB Max

Pass Bandwidth

±1.2 kHz / 6.0 dB Max

Stop Bandwidth

±1.9 kHz / 46 dB Min // ±2.1 kHz / 66 dB Min // 455kHz+ / 20 dB Min

Ripple

3.0 dB Max

Case

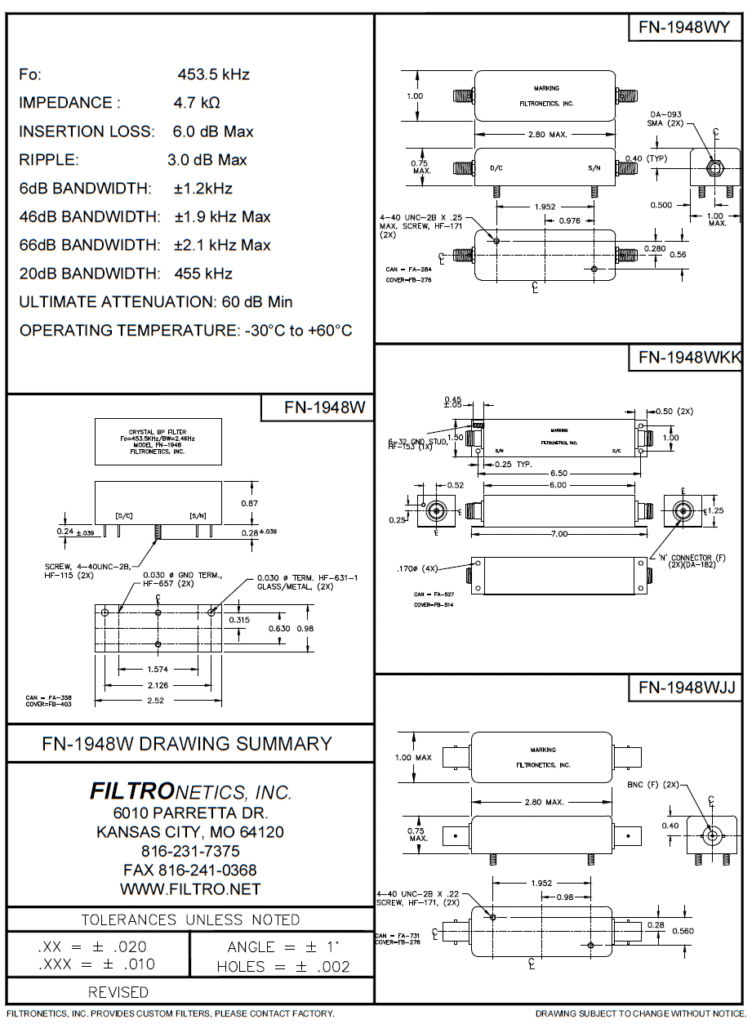

Various (download the pdf sheet for details)

Operating Temperature

-10 to +50°C

Poles

Impedance

4700 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
