FN-1966W

Name: FN-1966W - Filtronetics
SKU: FN-1966W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-1966W

Frequency

470 kHz

Insertion Loss

6.0 dB Max

Pass Bandwidth

300 Hz / 3.0 dB Max

Stop Bandwidth

± 1.5 kHz / 70 dB Min

Ripple

Case

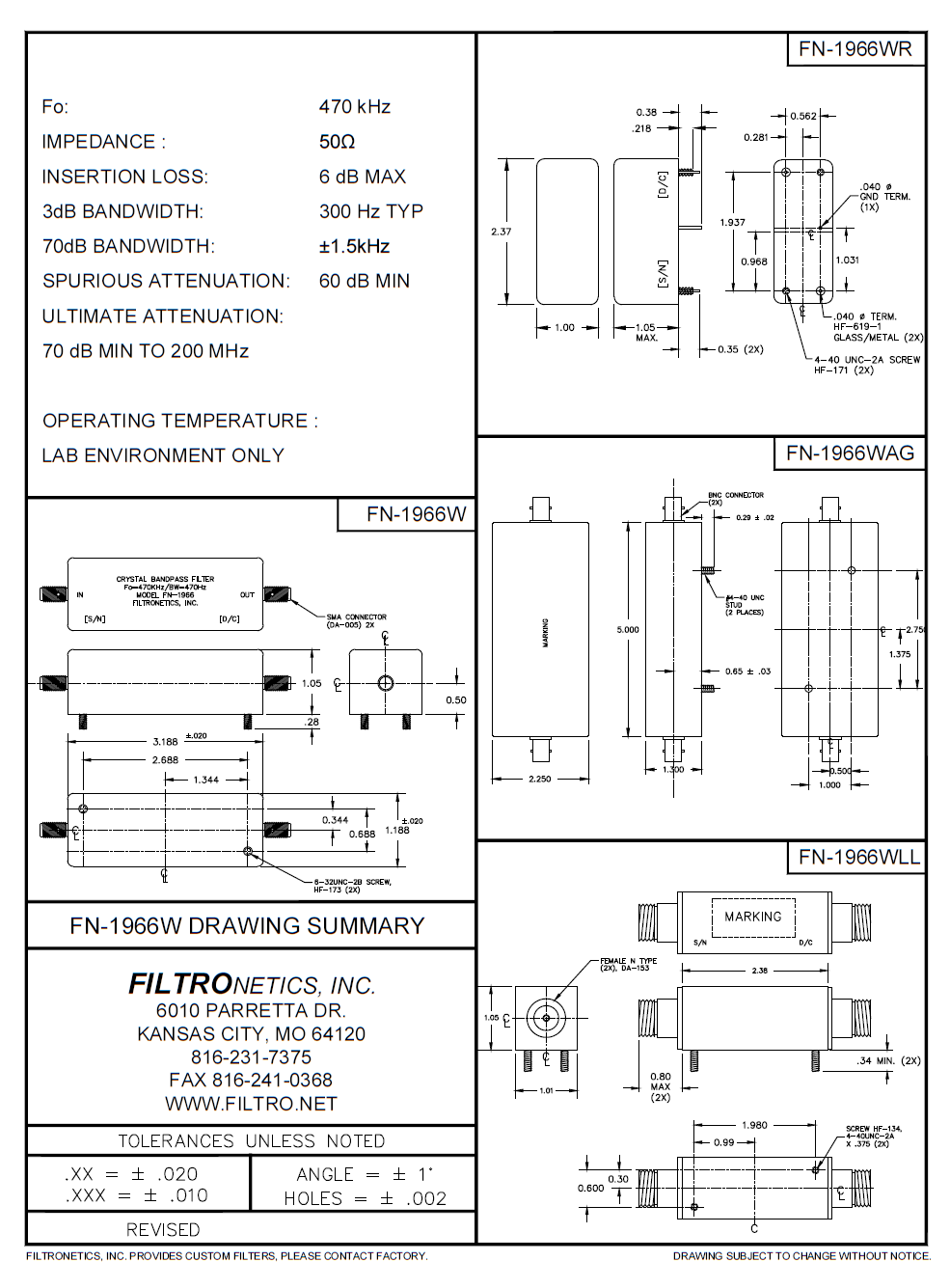

Various (download the pdf sheet for details)

Operating Temperature

Lab Environment Only

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
