FN-1070W

Name: FN-1070W - Filtronetics
SKU: FN-1070W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-1070W

Frequency

455 KHz

Insertion Loss

6.0 dB Max

Pass Bandwidth

1000~1250Hz / 3.0 dB Max

Stop Bandwidth

2000 Hz / 50 dB min

Ripple

2.0 dB Max

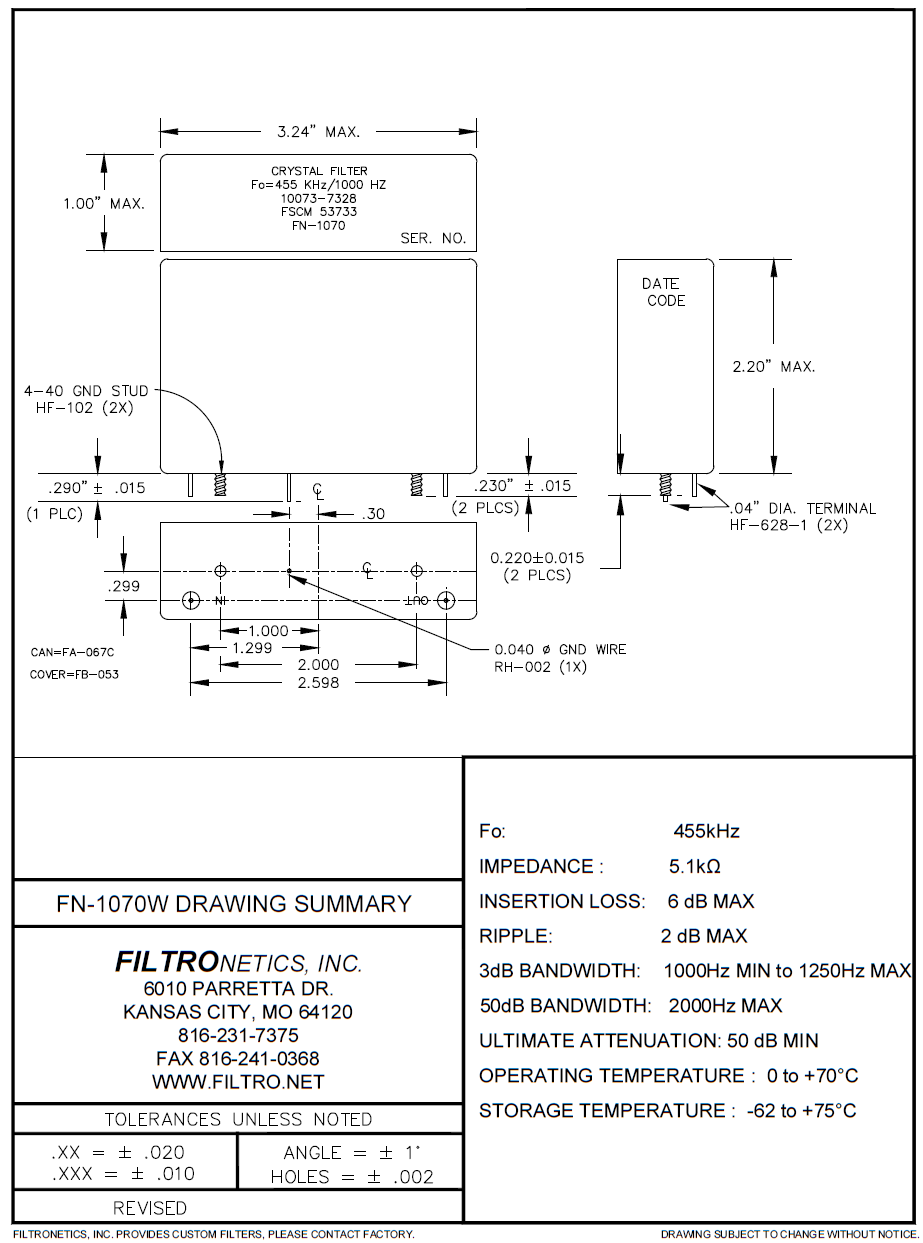

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +70°C

Poles

Impedance

5100 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
