FN-2437W

Name: FN-2437W - Filtronetics
SKU: FN-2437W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-2437W

Frequency

70 MHz

Insertion Loss

6.0 dB Max

Pass Bandwidth

350 KHz / 3 dB Max

Stop Bandwidth

±500 KHz / 20 dB Min // ±1 MHz / 40 dB Min // ±1.75 MHz / 50 dB Min // ±3.5 MHz / 60 dB Min

Ripple

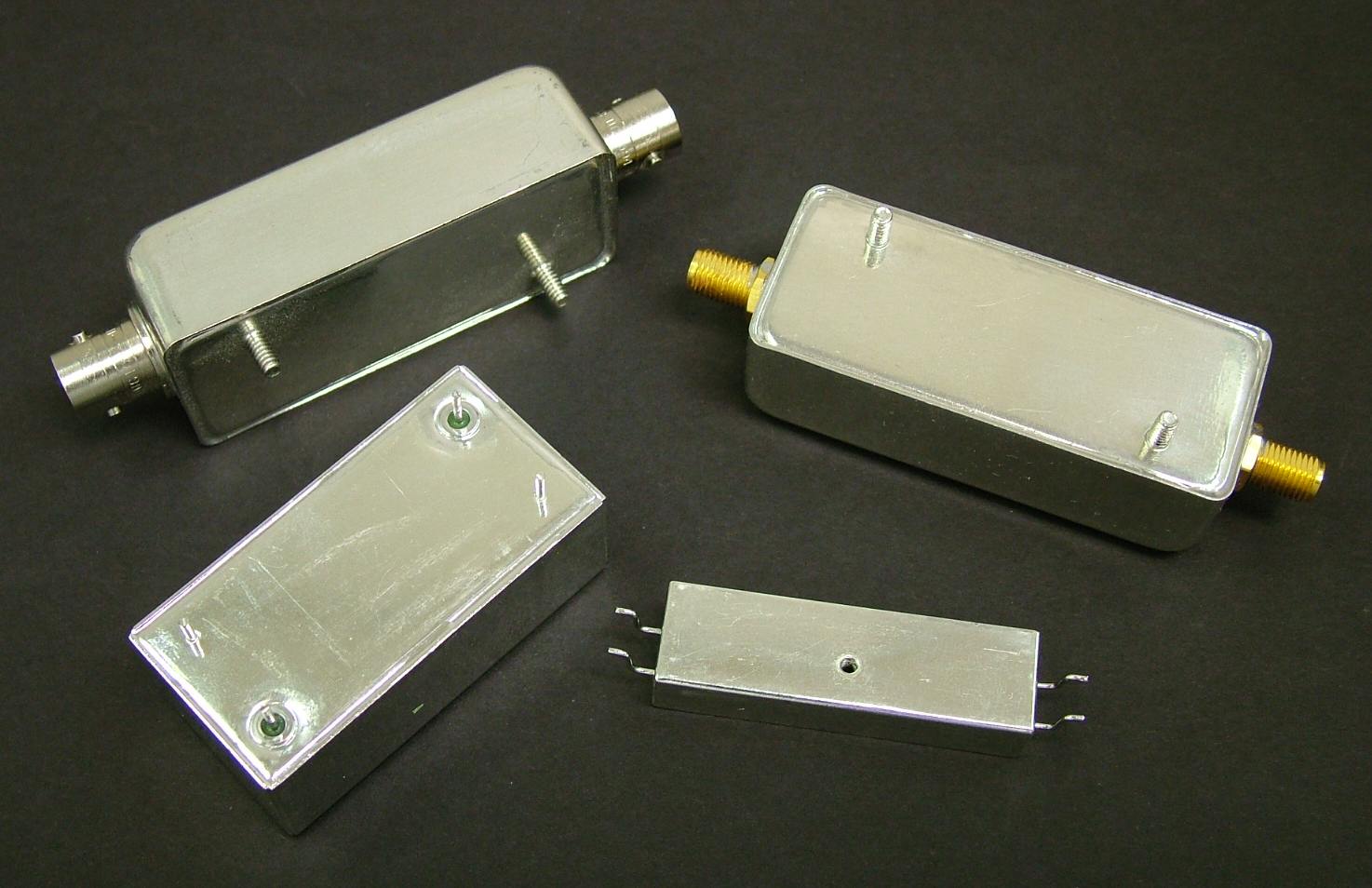

Case

Various (download the pdf sheet for details)

Operating Temperature

-55 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
