FN-1662W

Name: FN-1662W - Filtronetics
SKU: FN-1662W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-1662W

Frequency

453.3 kHz

Insertion Loss

6.0 dB Max

Pass Bandwidth

451.9~454.7 kHz / 6.0 dB Max

Stop Bandwidth

455 kHz / 66 dB Min // 451.1 kHz / 66 dB Min // 455.55 kHz / 66dB Min

Ripple

Case

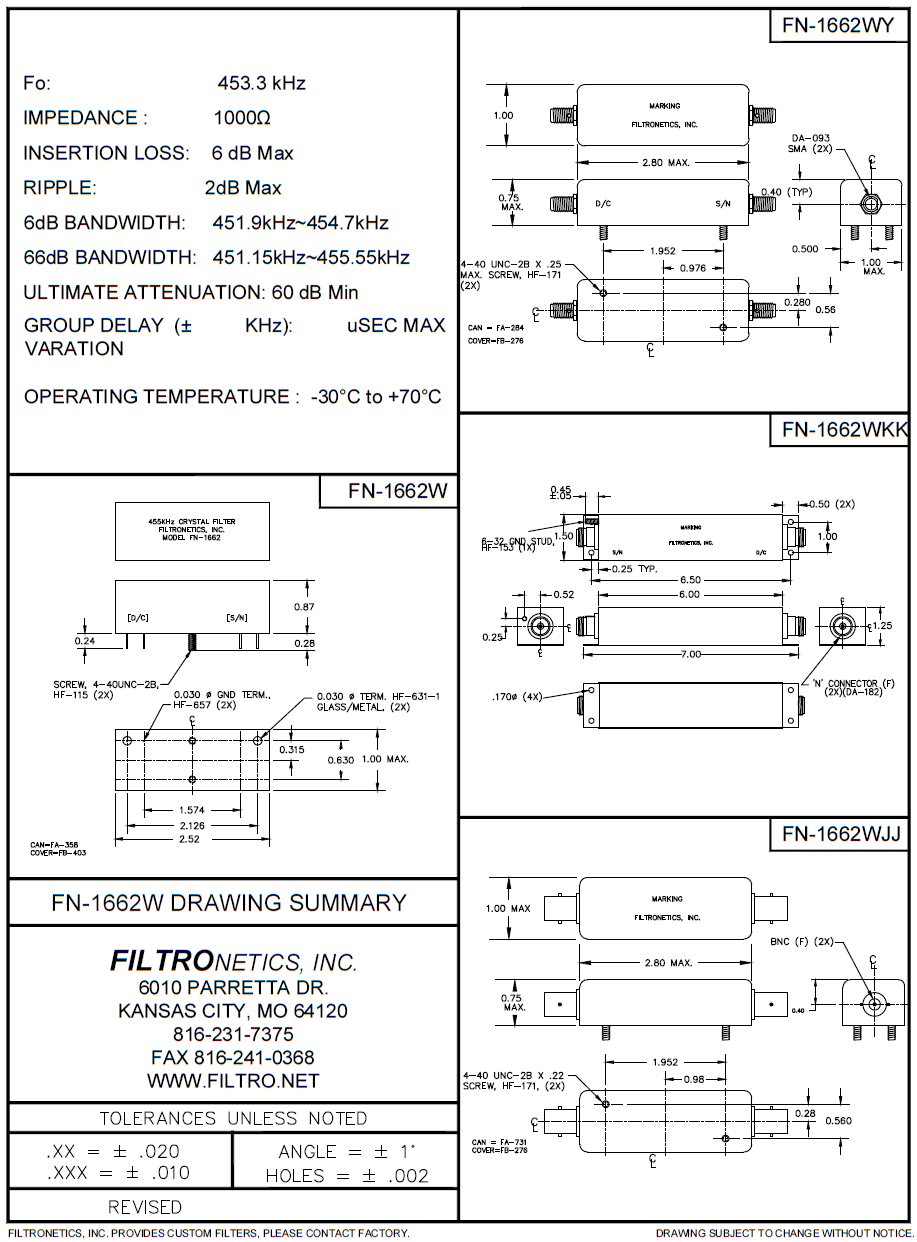

Various (download the pdf sheet for details)

Operating Temperature

-30 to +70°C

Poles

Impedance

1000 ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort
