6.0 dB Max

Capabilities

Frequency range:

Bandwidth:

Standard Frequencies:

Types:

Transfer Functions:

Poles:

Packages:

Power:

Applications:

0 products found.

Model Number

Frequency

Pass Bandwidth

Stop Bandwidth

Insertion Loss

Ripple

Case

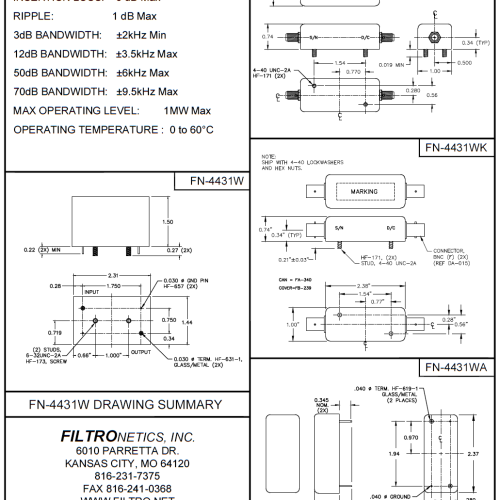

FN-4431W

Frequency

4.4MHz±1kHz

Pass Bandwidth

±2kHz / 3.0 dB Max

Stop Bandwidth

±3.4kHz / 12 dB Min // ±6kHz / 50 dB Min // ±9.5 kHz / 70 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

Various (download the pdf sheet for details)

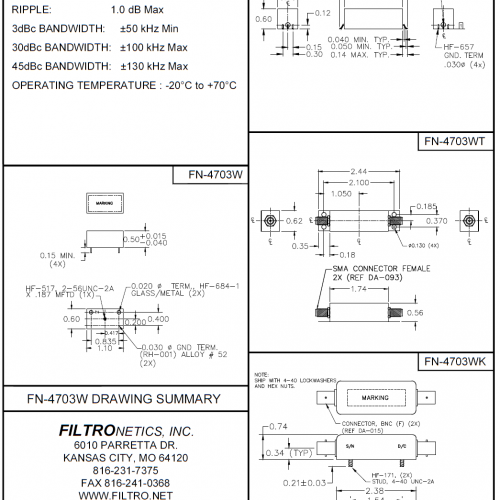

FN-4703W

Frequency

121.5 MHz

Pass Bandwidth

±50 kHz / 3.0 dB Max

Stop Bandwidth

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

Various (download the pdf sheet for details)

FN-539W

Frequency

455.0 KHz

Pass Bandwidth

16 KHz / 3 dB Max

Stop Bandwidth

32 KHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

3.225 x 0.985 x 2.185 in (SMD)

FN-845-2W

Frequency

10.70 MHz

Pass Bandwidth

40 KHz / 2 dB Max // 50 KHz / 6 dB Max

Stop Bandwidth

104 KHz / 70 dB Min

Insertion Loss

6.0 dB Max

Ripple

0.75 dB Max

Case

Various (download the pdf sheet for details)

FN-859W

Frequency

455 KHz

Pass Bandwidth

300 to 375 Hz / 3.0 dB Max

Stop Bandwidth

±500Hz / 60 dB Bandwidth

Insertion Loss

6.0 dB Max

Ripple

3.0 dB Max

Case

Various (download the pdf sheet for details)

FN-860W

Frequency

455 KHz

Pass Bandwidth

6 kHz / 3.0 dB Max

Stop Bandwidth

19 kHz / 60 dB Min // 425 kHz~485 kHz / 50 dB Min

Insertion Loss

6.0 dB Max

Ripple

3.0 dB Max

Case

Various (download the pdf sheet for details)

FN-903W

Frequency

455 KHz

Pass Bandwidth

1.0 kHz / 3.0 dB Max

Stop Bandwidth

±2.25 kHz / 60 dB Min

Insertion Loss

6.0 dB Max

Ripple

2.0 dB Max

Case

Various (download the pdf sheet for details)

SF0153000

Frequency

153.30 MHz

Pass Bandwidth

0.04 MHz / 1 dB Max // 0.06 MHz / 3 dB Max

Stop Bandwidth

750 MHz / 40 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.00 dB Max (in Passband)

Case

13.30 x 6.50 x 1.80 mm (SMD)

SF0243000

Frequency

243 MHz

Pass Bandwidth

0.019 MHz / 3 dB Typ

Stop Bandwidth

Various (download the pdf sheet for details)

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max in Passband

Case

7.0 x 5.0 x 1.85 mm (SMD)

SF0390012

Frequency

390 MHz

Pass Bandwidth

±6 MHz / 3.0 dB Max

Stop Bandwidth

350 MHz / 45 dB Min // 430 MHz / 45 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

3.8 x 3.8 x 0.7 mm (SMD)

SF0450001

Frequency

450 MHz

Pass Bandwidth

1 MHz / 3.0 dB Max

Stop Bandwidth

447 MHz / 40 dB Min // 453 MHz / 40 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

5.0 x 5.0 x 1.35 mm (SMD)

SF0500008

Frequency

500 MHz

Pass Bandwidth

±4 MHz / 3.0 dB Max

Stop Bandwidth

488 MHz / 45 dB Min // 512 MHz / 45 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

3.8 x 3.8 x 0.7 mm (SMD)

SF0500012

Frequency

500 MHz

Pass Bandwidth

±6 MHz / 3.0 dB Max

Stop Bandwidth

400 MHz / 30 dB Min //600 MHz / 30 dB Min

Insertion Loss

6.0 dB Max

Ripple

1.0 dB Max

Case

3.8 x 3.8 x 0.7 mm (SMD)

SF140001

Frequency

140 MHz

Pass Bandwidth

40 KHz / 3.0 dB Max

Stop Bandwidth

450 KHz / 50 dB Min

Insertion Loss

6.0 dB Max

Ripple

3.0 dB Max (at Passband (Fc±20KHz))

Case

7.0 x 5.0 x 1.85 mm (SMD)
