FN-859W

Name: FN-859W - Filtronetics
SKU: FN-859W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-859W

Frequency

455 KHz

Insertion Loss

6.0 dB Max

Pass Bandwidth

300 to 375 Hz / 3.0 dB Max

Stop Bandwidth

±500Hz / 60 dB Bandwidth

Ripple

3.0 dB Max

Case

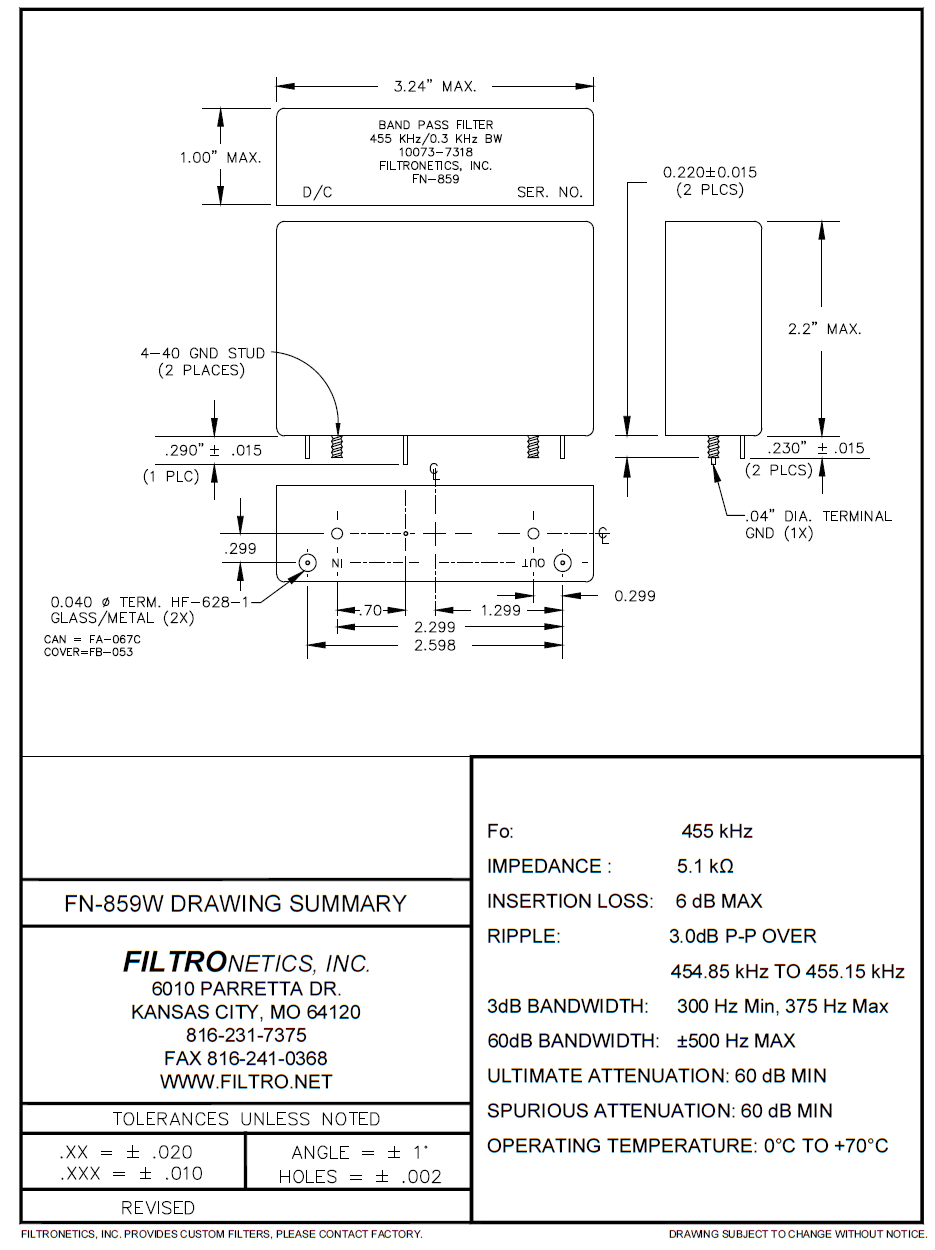

Various (download the pdf sheet for details)

Operating Temperature

0 to +70°C

Poles

Impedance

5100 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
