FN-4431W

Name: FN-4431W - Filtronetics
SKU: FN-4431W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4431W

Frequency

4.4MHz±1kHz

Insertion Loss

6.0 dB Max

Pass Bandwidth

±2kHz / 3.0 dB Max

Stop Bandwidth

±3.4kHz / 12 dB Min // ±6kHz / 50 dB Min // ±9.5 kHz / 70 dB Min

Ripple

1.0 dB Max

Case

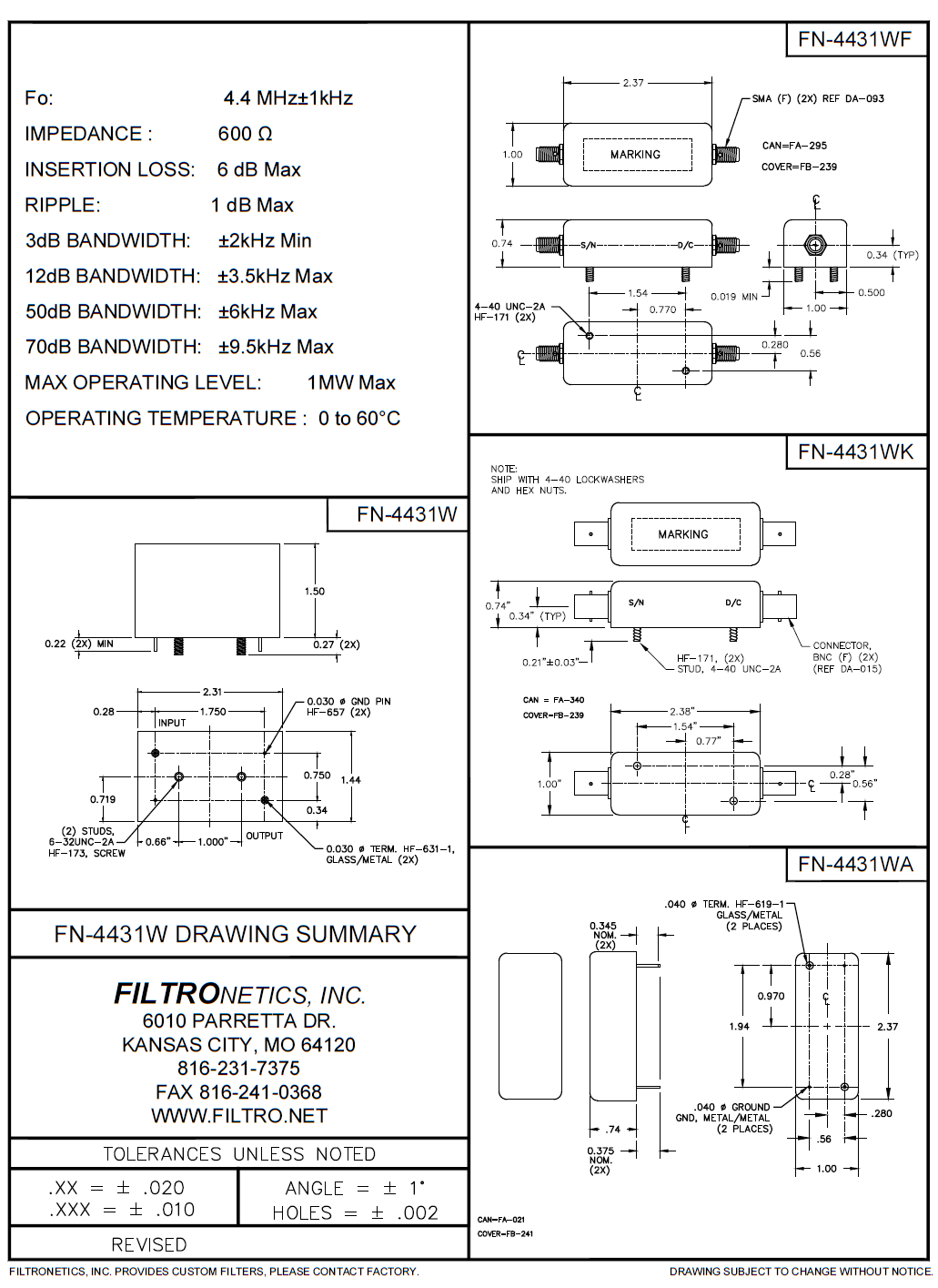

Various (download the pdf sheet for details)

Operating Temperature

0 to +60°C

Poles

Impedance

600 ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
