FN-4703W

Name: FN-4703W - Filtronetics
SKU: FN-4703W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4703W

Frequency

121.5 MHz

Insertion Loss

6.0 dB Max

Pass Bandwidth

±50 kHz / 3.0 dB Max

Stop Bandwidth

Ripple

1.0 dB Max

Case

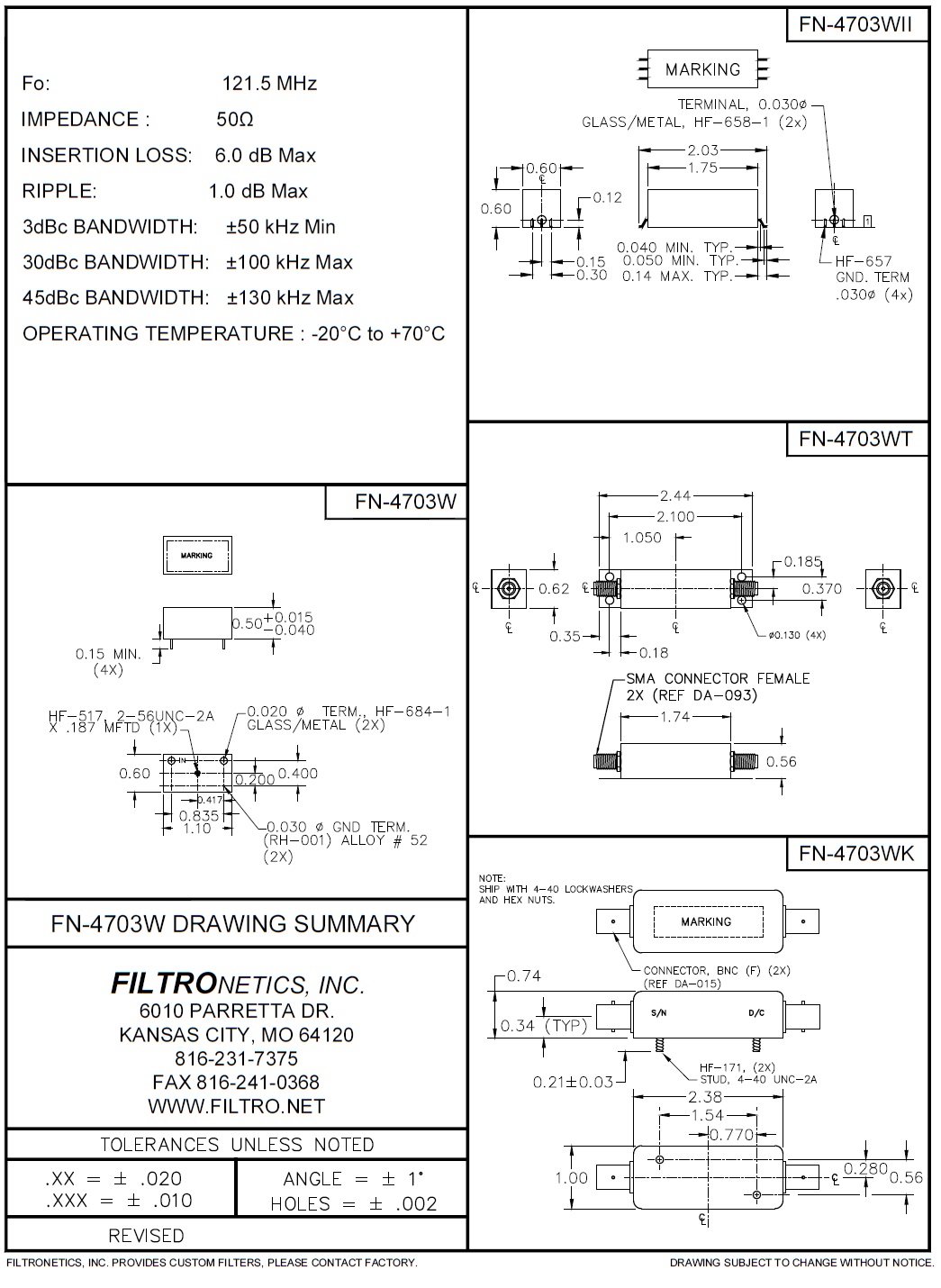

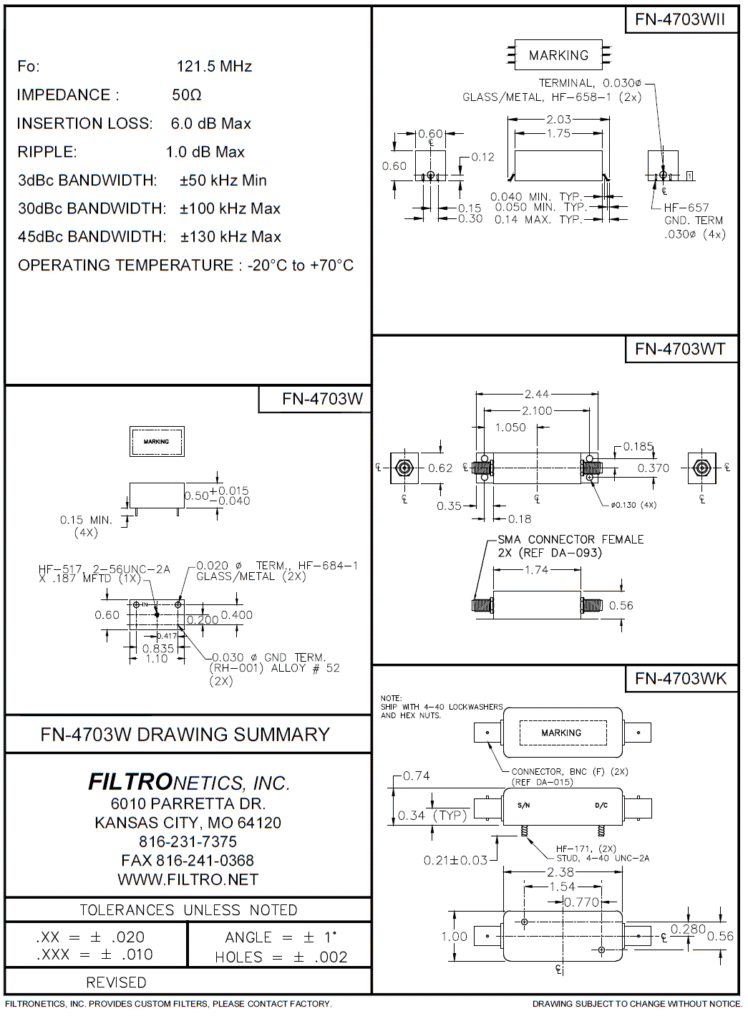

Various (download the pdf sheet for details)

Operating Temperature

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
