0.1 dB Max

Capabilities

Frequency range:

Bandwidth:

Standard Frequencies:

Types:

Transfer Functions:

Poles:

Packages:

Power:

Applications:

0 products found.

Model Number

Frequency

Pass Bandwidth

Stop Bandwidth

Insertion Loss

Ripple

Case

FN-2418W

Frequency

70 MHz

Pass Bandwidth

2 MHz / 3 dB Max

Stop Bandwidth

20 MHz / 40 dB Min

Insertion Loss

7.7 dB Max

Ripple

0.1 dB Max

Case

Various (download the pdf sheet for details)

FN-2802W

Frequency

100 MHz

Pass Bandwidth

±15 KHz / 3 dB Max

Stop Bandwidth

±80 KHz / 30 dB Max // 200 KHz / 60 dB Min

Insertion Loss

3.5 dB Max

Ripple

0.1 dB Max

Case

Various (download the pdf sheet for details)

FN-3682W

Frequency

221.11875 MHz

Pass Bandwidth

±10 KHz / 3 dB Max

Stop Bandwidth

130 KHz / 40 dB Min // Fo-45 MHz / 60 dB Min

Insertion Loss

6 dB Max

Ripple

0.1 dB Max

Case

2.37 x 1.00 x 0.74 in (BNC)

FN-3699W

Frequency

Pass Bandwidth

Stop Bandwidth

160 to 169.99 MHz / 15 dBc Min // 170 to 350 MHz / 55 dBc Min

Insertion Loss

0.5 dB Max

Ripple

0.1 dB Max

Case

Various (download the pdf sheet for details)

FN-3700W

Frequency

Pass Bandwidth

Stop Bandwidth

187 to 197.99 MHz / 15 dBc Min // 198 to 375 MHz / 55 dBc Min

Insertion Loss

0.5 dB Max

Ripple

0.1 dB Max

Case

2.37 x 1.00 x 0.74 in (SMD)

FN-384W

Frequency

10.7 MHz

Pass Bandwidth

200 KHz / 3 dB Max

Stop Bandwidth

1 MHz / 60 dB Min

Insertion Loss

8.0 dB Max

Ripple

0.1 dB Max

Case

Various (download the pdf sheet for details)

FN-4371W

Frequency

221 MHz [Various (download the pdf sheet for details)]

Pass Bandwidth

±10 KHz / 3 dB Max

Stop Bandwidth

80 KHz / 40 dB Min

Insertion Loss

6 dB Max

Ripple

0.1 dB Max

Case

Various (download the pdf sheet for details)

FN-920W

Frequency

80 KHz

Pass Bandwidth

10 Hz / 3 dB Max

Stop Bandwidth

66 Hz / 30 dB Min

Insertion Loss

4.0 dB Max

Ripple

0.1 dB Max

Case

Various (download the pdf sheet for details)

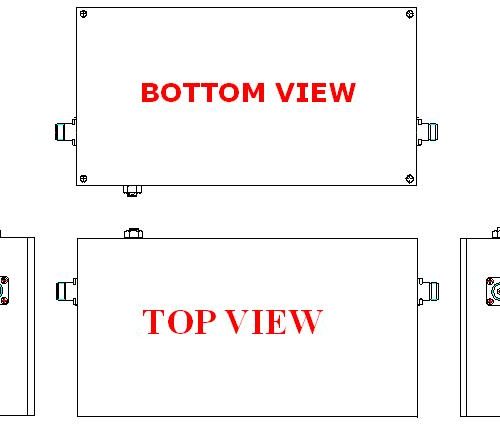

FNP-1074

Frequency

1030 MHz

Pass Bandwidth

35 MHz / 1 dB Max

Stop Bandwidth

At 970 MHz / 35 dB Min // At 1090 MHz / 35 dB Min

Insertion Loss

0.6 dB Max at BW

Ripple

0.1 dB Max

Case

152.4 x 88 x 38 mm (SMA (F))

FNP-1074S

Frequency

1030 MHz

Pass Bandwidth

35 MHz / 1 dB Max

Stop Bandwidth

At 970 MHz / 35 dB Min // At 1090 MHz / 35 dB Min

Insertion Loss

0.6 dB Max at BW

Ripple

0.1 dB Max

Case

111.0 x 70.0 x 38 mm (SMA)

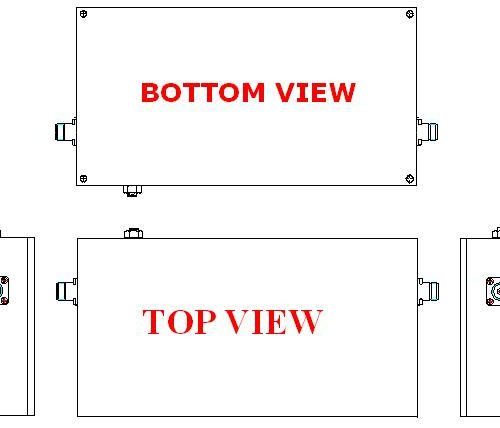

FNP-1075

Frequency

1090 MHz

Pass Bandwidth

35 MHz / 1 dB Max

Stop Bandwidth

'@ 1030 MHz / 35 dB Min // @ 1150 MHz / 35 dB Min

Insertion Loss

0.6 dB Max at BW

Ripple

0.1 dB Max

Case

152.4 x 88 x 38 mm (SMA)
