FNP-1074S

Name: FNP-1074S - Filtronetics
SKU: FNP-1074S
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

FNP-1074S

Frequency

1030 MHz

Insertion Loss

0.6 dB Max at BW

Pass Bandwidth

35 MHz / 1 dB Max

Stop Bandwidth

At 970 MHz / 35 dB Min // At 1090 MHz / 35 dB Min

Ripple

0.1 dB Max

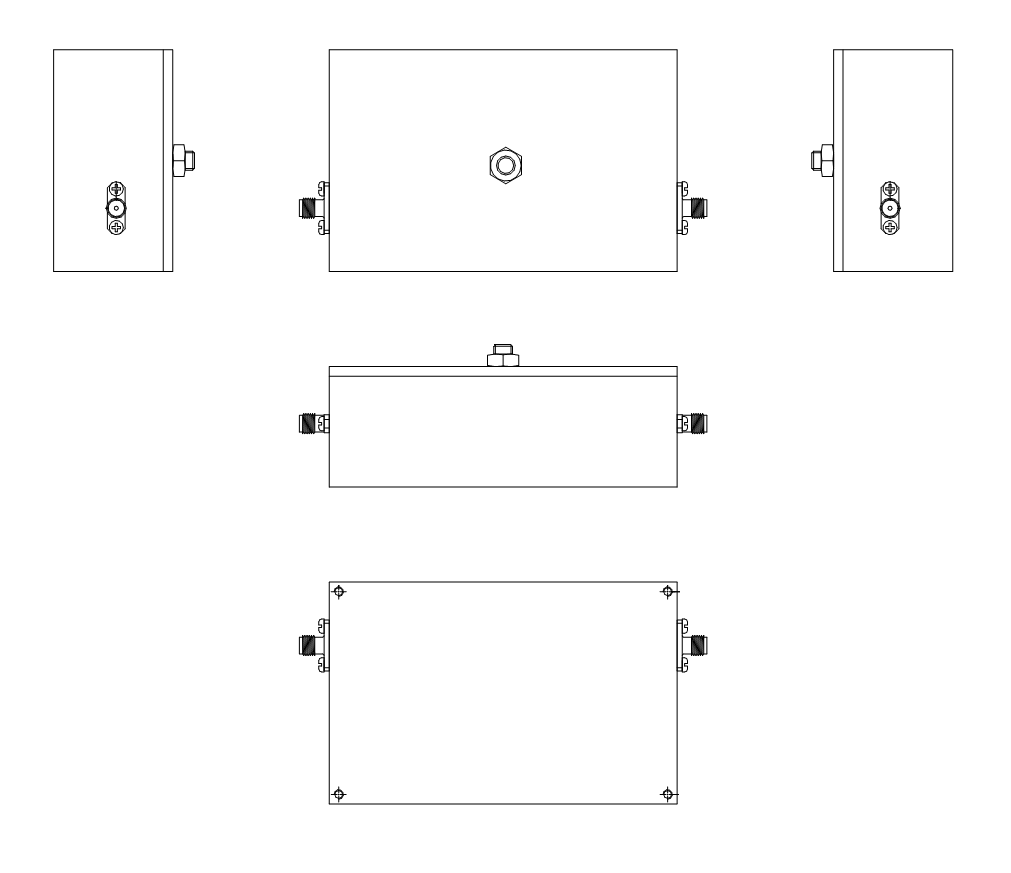

Case

111.0 x 70.0 x 38 mm (SMA)

Operating Temperature

-10 to +50°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
