SF0484010

Name: SF0484010 - Filtronetics
SKU: SF0484010
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

SF0484010

Frequency

484.50 MHz

Insertion Loss

3.5 dB Max

Pass Bandwidth

479.5~489.5 MHz / 3.0 dB Max

Stop Bandwidth

DC~Fc-45 MHz / 40 dB Min // Fc+70 ~ Fc+500 MHz / 40 dB Min

Ripple

1.5 dB Max

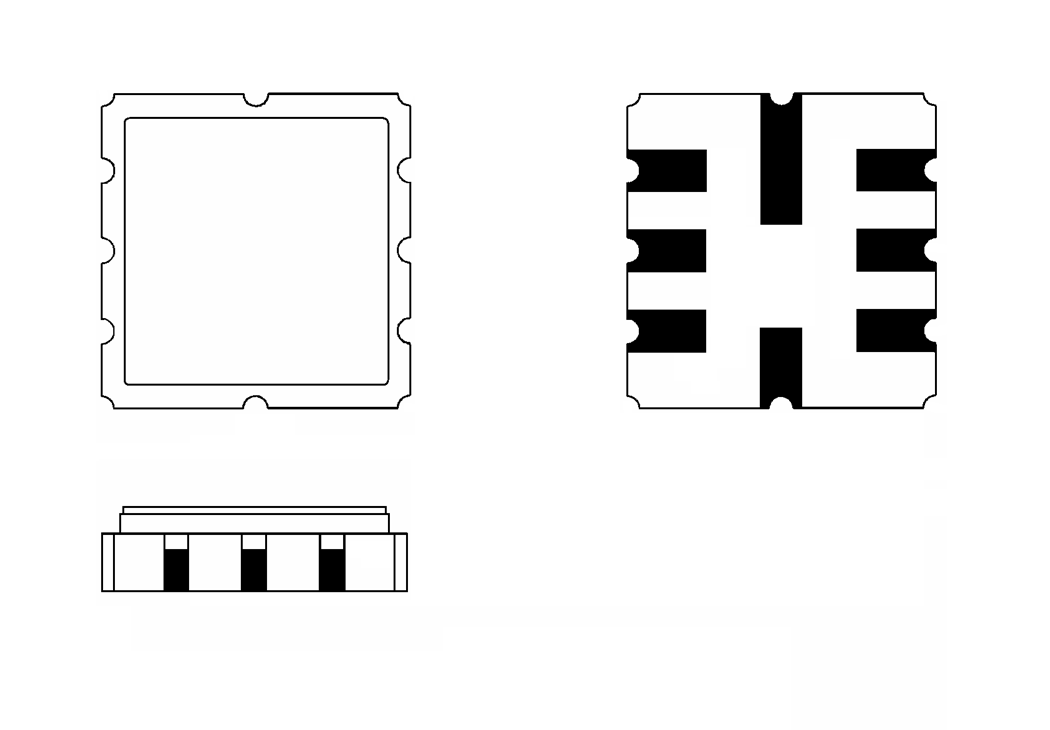

Case

5.0x5.0x1.3 mm (SMD)

Operating Temperature

-30 to +75°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
