FNP-1482

Name: FNP-1482 - Filtronetics
SKU: FNP-1482
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

FNP-1482

Frequency

17125 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

±125 MHz / 3.0 dB Max

Stop Bandwidth

DC~16525MHz / 50 dB Min // 17725~23000MHz / 50 dB Min

Ripple

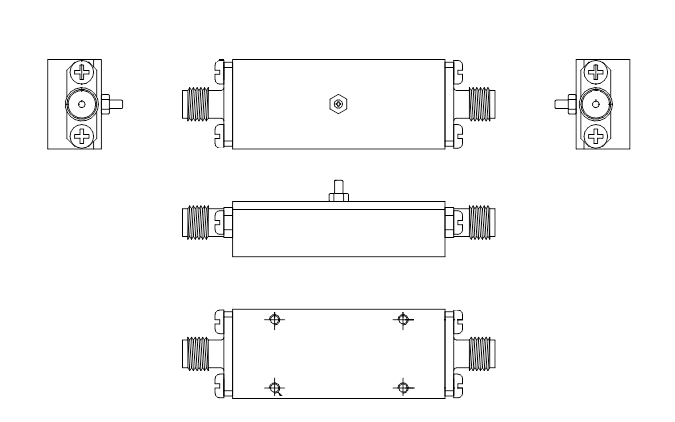

Case

40.5 x 14.5 x 17.0 mm (SMA)

Operating Temperature

-30 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
