FN-4745W

Name: FN-4745W - Filtronetics
SKU: FN-4745W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4745W

Frequency

159.045 MHz

Insertion Loss

10 dB Max

Pass Bandwidth

8.5 kHz Min

Stop Bandwidth

149.035~159.035MHz / 35 dB Min // 159.055~169.055MHz / 35 dB Min

Ripple

Case

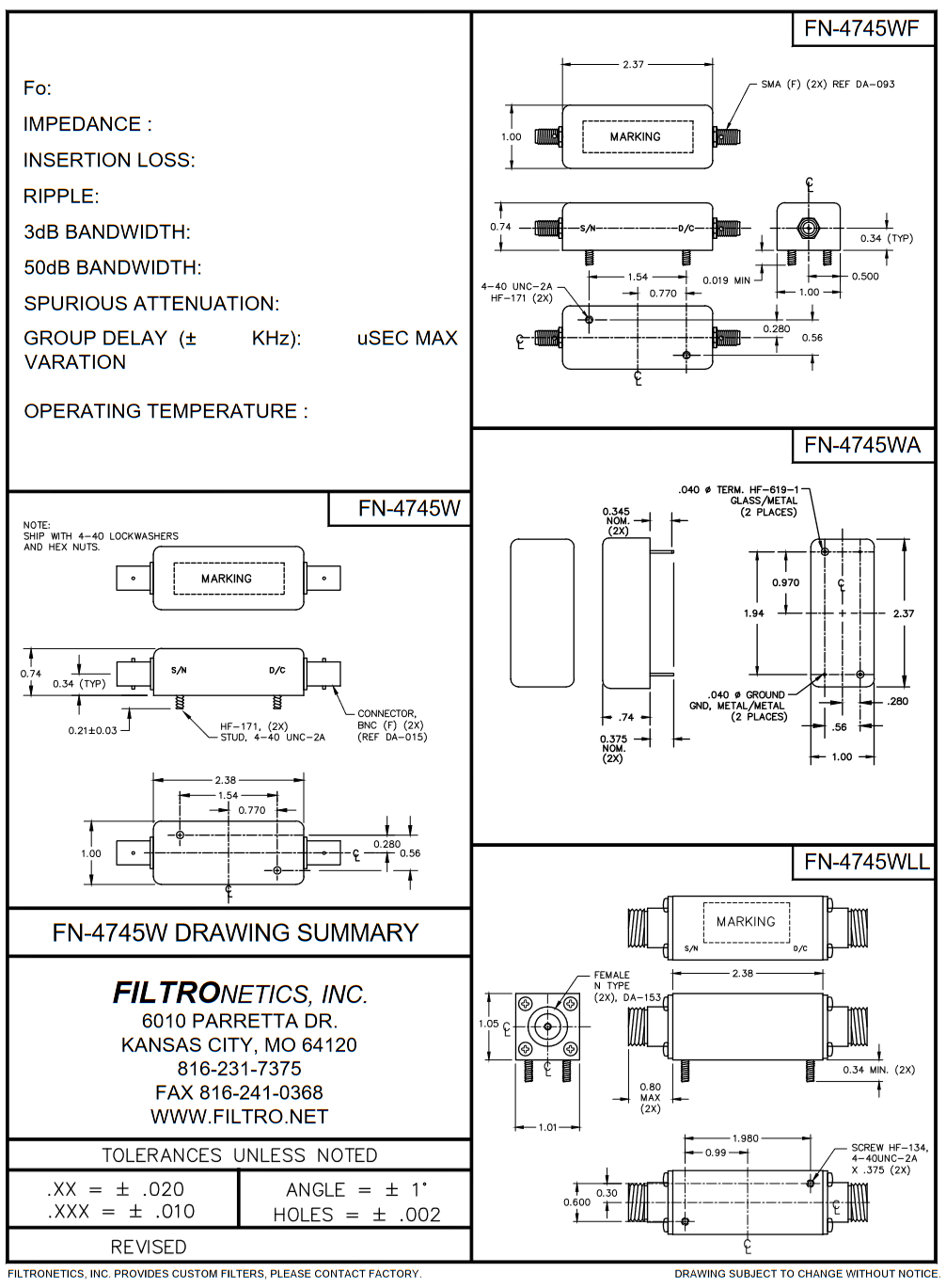

Various (download the pdf sheet for details)

Operating Temperature

+ 25°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
