FN-4743W

Name: FN-4743W - Filtronetics
SKU: FN-4743W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4743W

Frequency

1.4 MHz

Insertion Loss

6.5 dB Max

Pass Bandwidth

±75 Hz / 3.0 dB Max

Stop Bandwidth

±1 kHz / 60 dB Min // ±500 kHz / 70 dB Min

Ripple

3 dB Max

Case

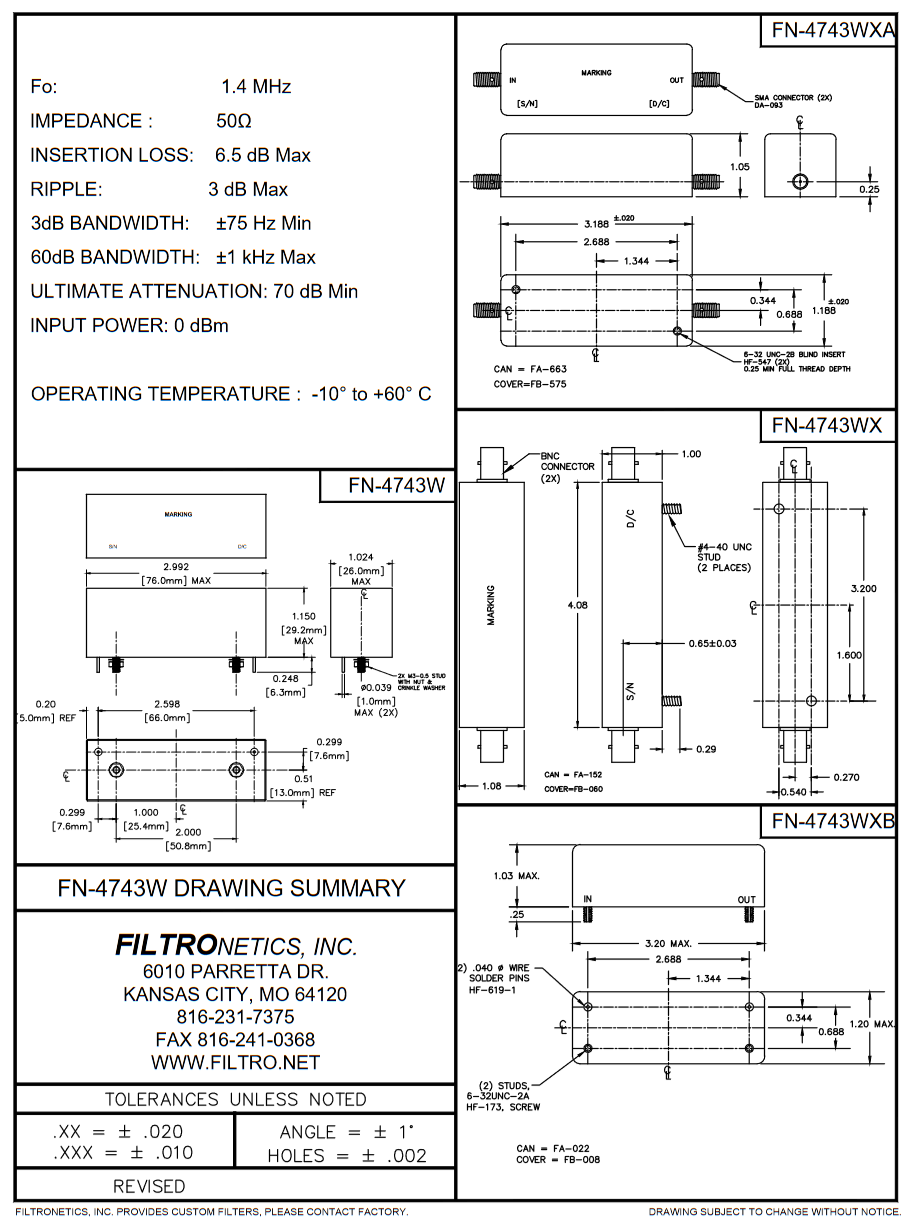

Various (download the pdf sheet for details)

Operating Temperature

-10 to +60°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
