FN-4728W

Name: FN-4728W - Filtronetics
SKU: FN-4728W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4728W

Frequency

10.7 MHz

Insertion Loss

2 dB Max

Pass Bandwidth

±2.5 kHz / 2.0 dB Max // ±3.5 kHz / 6.0 dB Max

Stop Bandwidth

±4.0 kHz / 26 dB Min // ± 5.8 kHz / 90 dB Min

Ripple

1.0 dB Max in Pass Band

Case

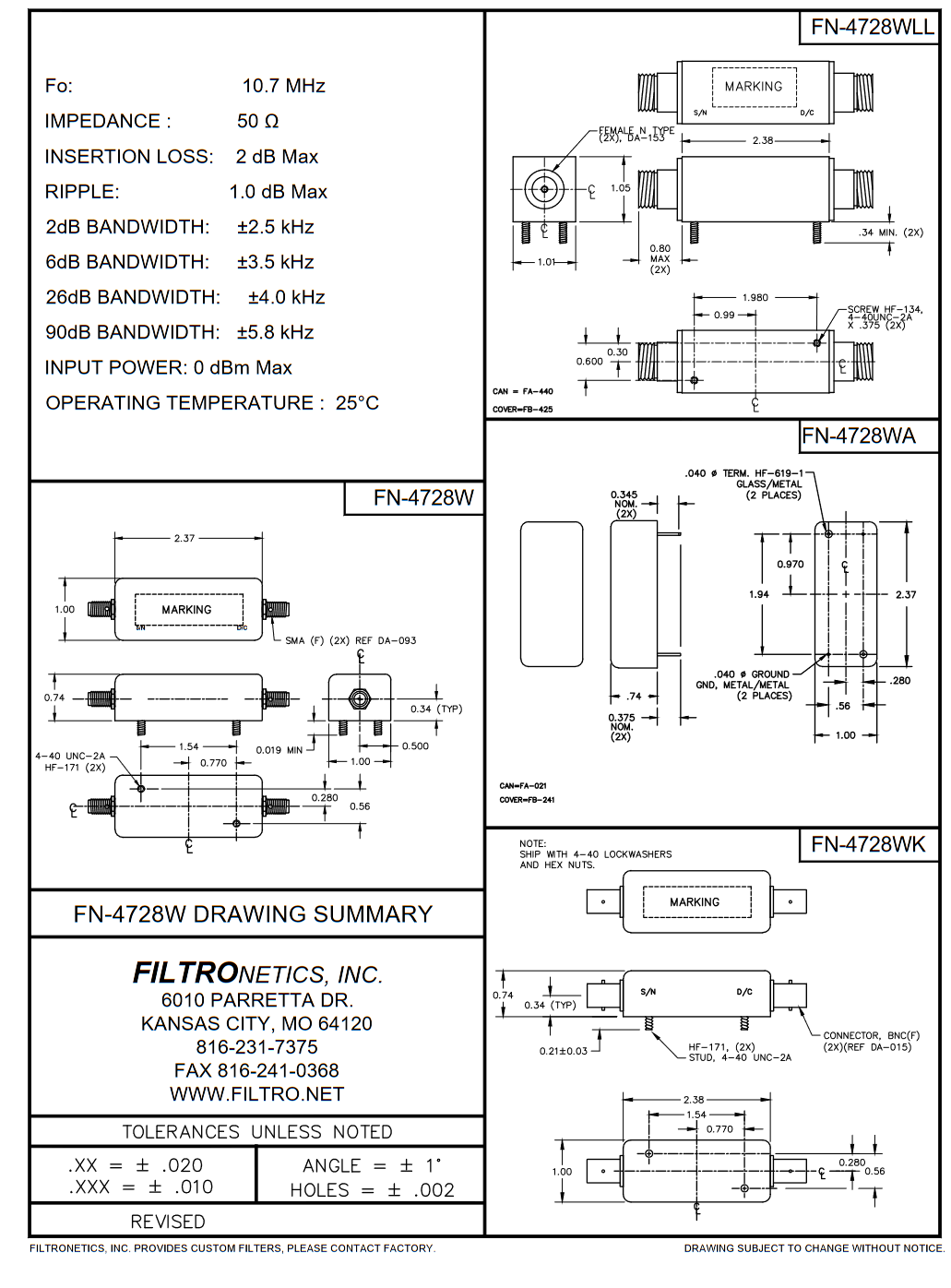

Various (download the pdf sheet for details)

Operating Temperature

+ 25°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
