FN-4727W

Name: FN-4727W - Filtronetics
SKU: FN-4727W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4727W

Frequency

230 MHz

Insertion Loss

3.0 dB Max

Pass Bandwidth

20 KHz / 3 dB Max

Stop Bandwidth

200 MHz / 30 dBc Min // 250 MHz / 30 dBc Min

Ripple

0 dB Typ

Case

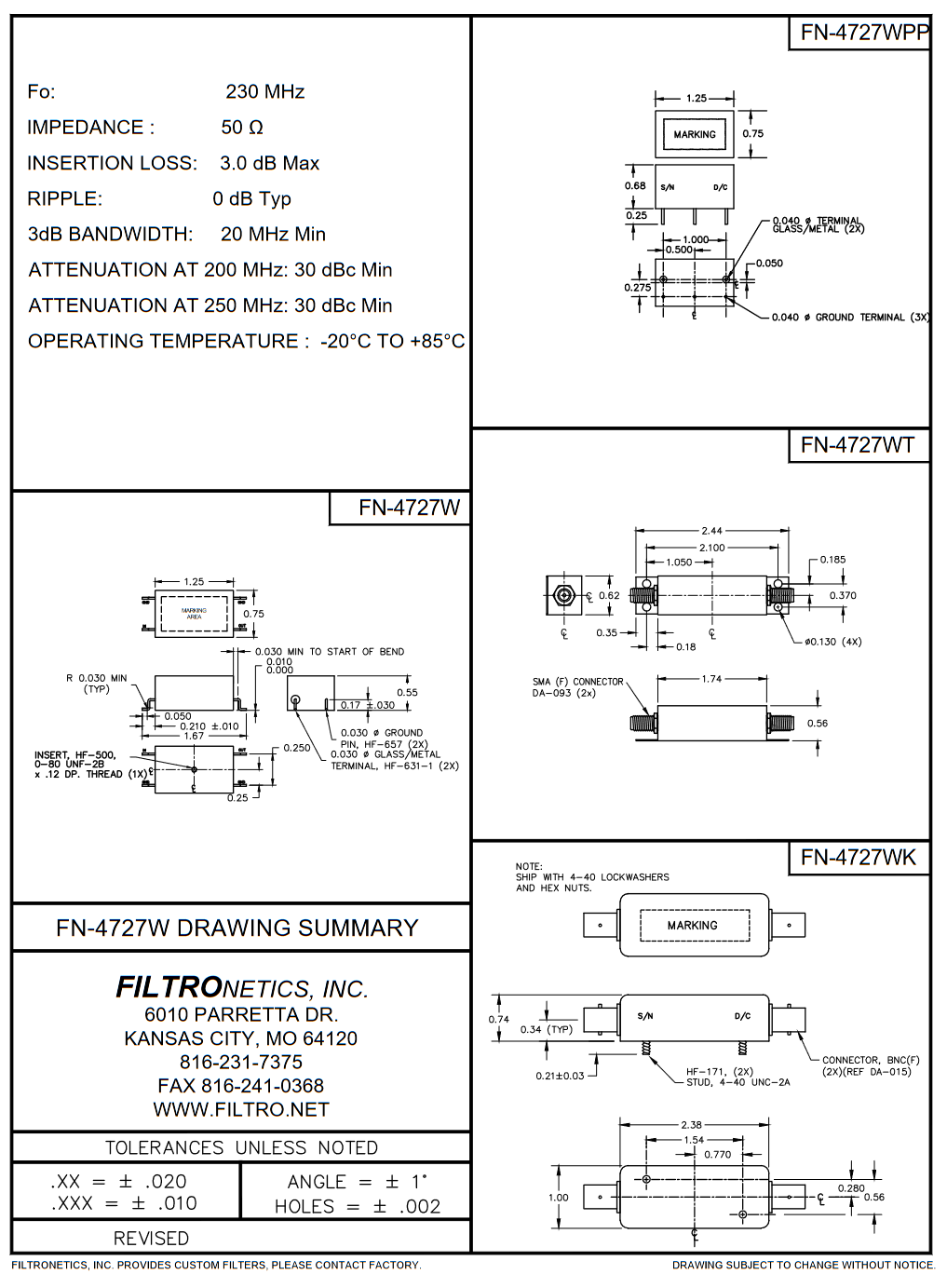

Various (download the pdf sheet for details)

Operating Temperature

-20 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
