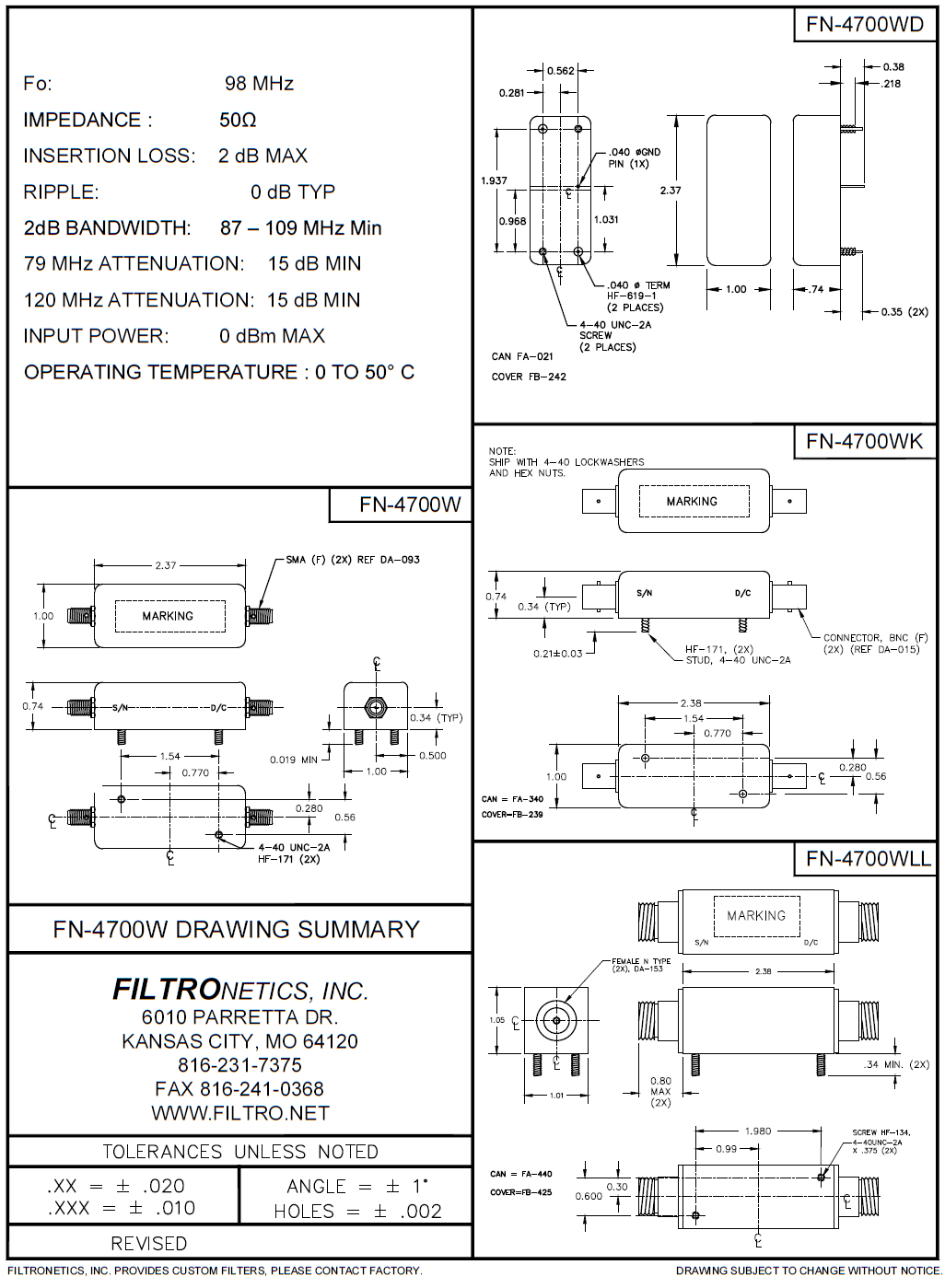

FN-4700W

Name: FN-4700W - Filtronetics
SKU: FN-4700W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4700W

Frequency

98.0 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

87~109 MHz / 2.0 dB Max

Stop Bandwidth

79 MHz / 15 dB Min // 120 MHz / 15 dB Min

Ripple

0 dB Typ

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +50°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass
