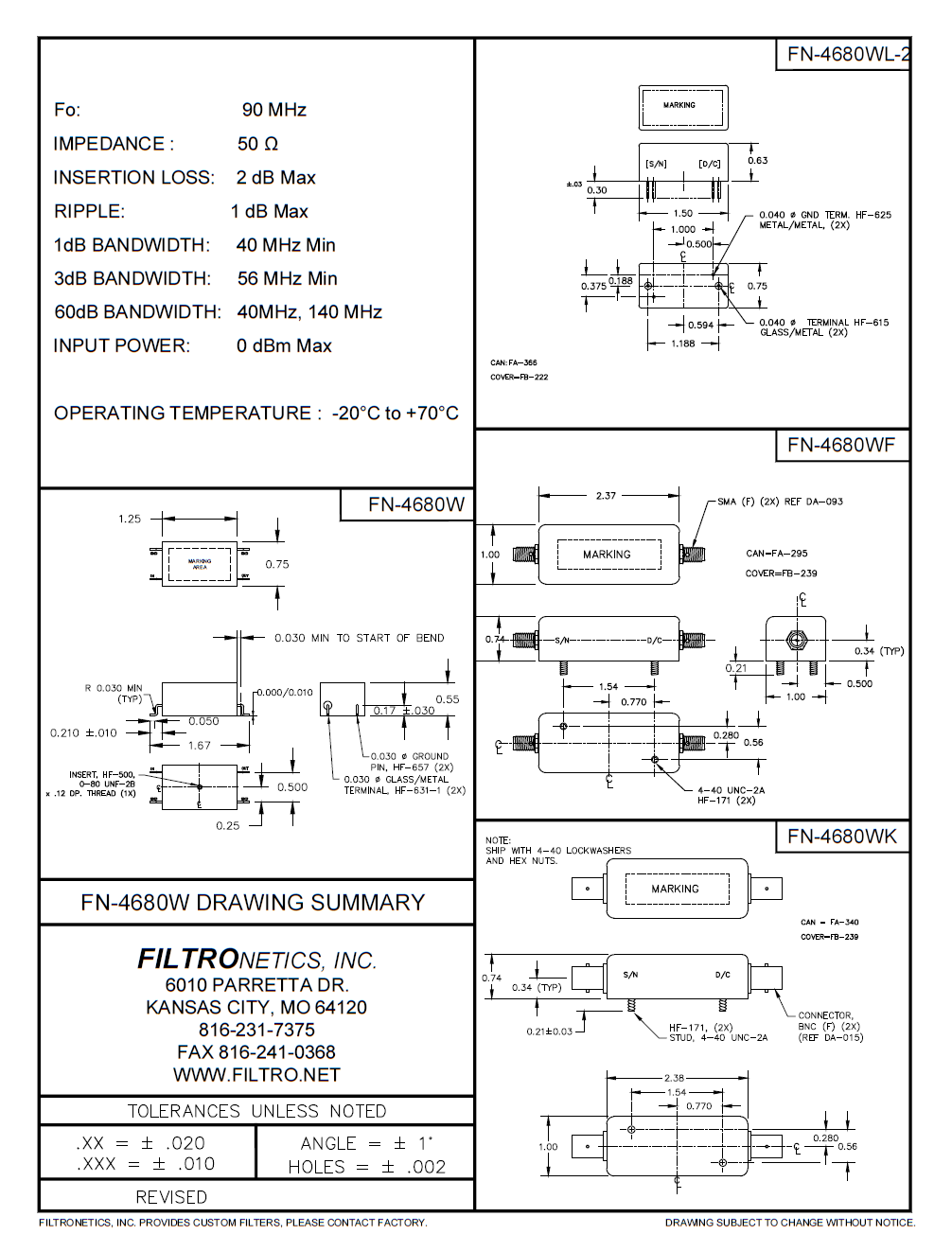

FN-4680W

Name: FN-4680W - Filtronetics
SKU: FN-4680W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4680W

Frequency

90 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

40 MHz / 1.0 dB Max // 50 MHz / 3.0 dB Max

Stop Bandwidth

40 MHz / 60 dB Min // 140 MHz / 60 dB Min

Ripple

1.0 dB Max in Pass Band

Case

1.25 x 0.75 x 0.55 in (SMD)

Operating Temperature

-20 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
