FN-3411W

Name: FN-3411W - Filtronetics
SKU: FN-3411W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-3411W

Frequency

10.70 MHz ±100 Hz Room temp., ±300 Hz Over Temp.

Insertion Loss

4.0 dB Max

Pass Bandwidth

1.20 KHz Min / 3 dB

Stop Bandwidth

8 KHz / 60 dB Min

Ripple

0.5 dB Max

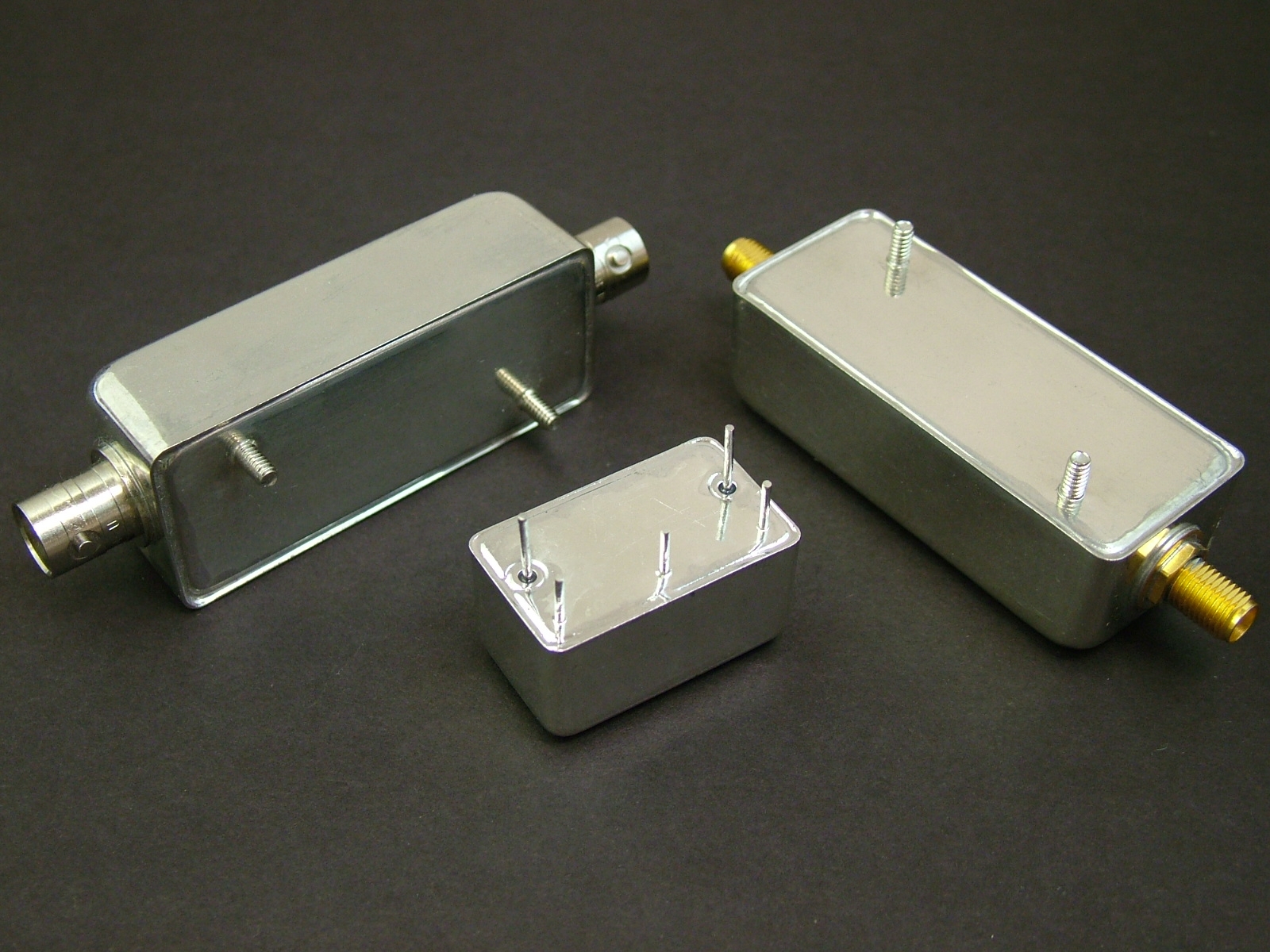

Case

Various (download the pdf sheet for details)

Operating Temperature

-40 to + 85 °C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
