FN-2605W

Name: FN-2605W - Filtronetics
SKU: FN-2605W
Availability: InStock

Bandstop Filters - Filters

Capabilities

Model Number:

FN-2605W

Frequency

7.675 MHz

Insertion Loss

1.0 dB Max

Pass Bandwidth

'-780 +690 KHz / 3 dB Max

Stop Bandwidth

±26 KHz / 60 dB Min

Ripple

1.0 dB Max

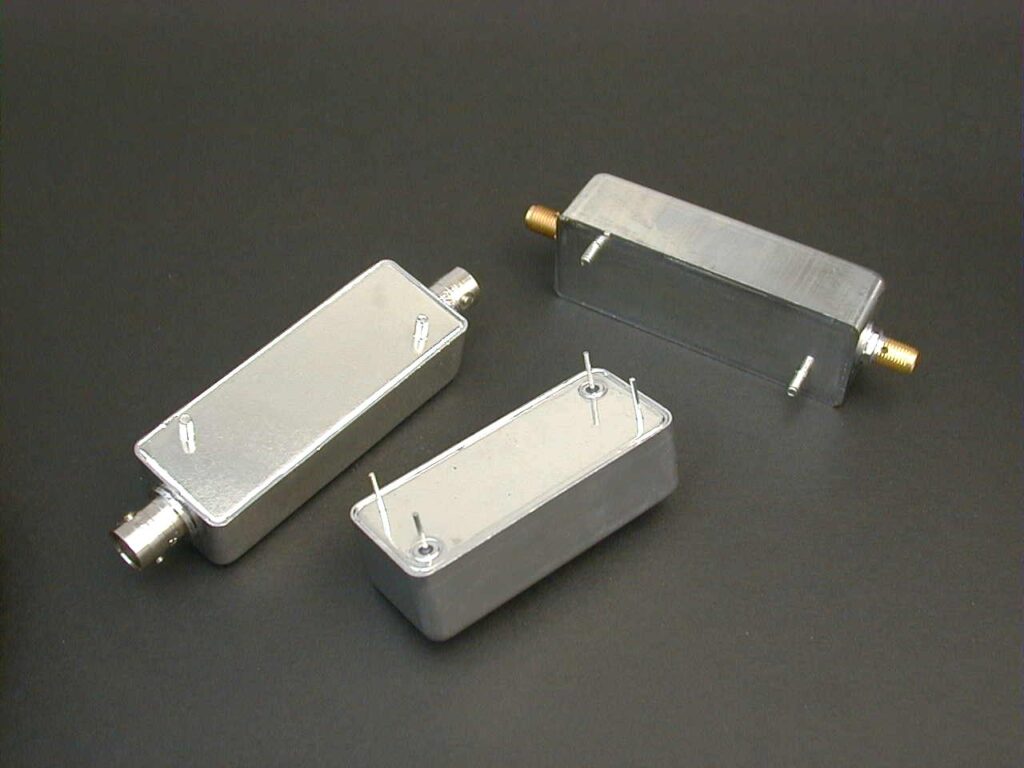

Case

Various (download the pdf sheet for details)

Operating Temperature

'-40 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Band stop

Logic

Sort

Type
