FN-2400W

Name: FN-2400W - Filtronetics
SKU: FN-2400W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-2400W

Frequency

1.75 MHz

Insertion Loss

3.5 dB Max

Pass Bandwidth

125 KHz / 3 dB Max

Stop Bandwidth

600 KHz / 50 dB Min

Ripple

0.1 dB Max

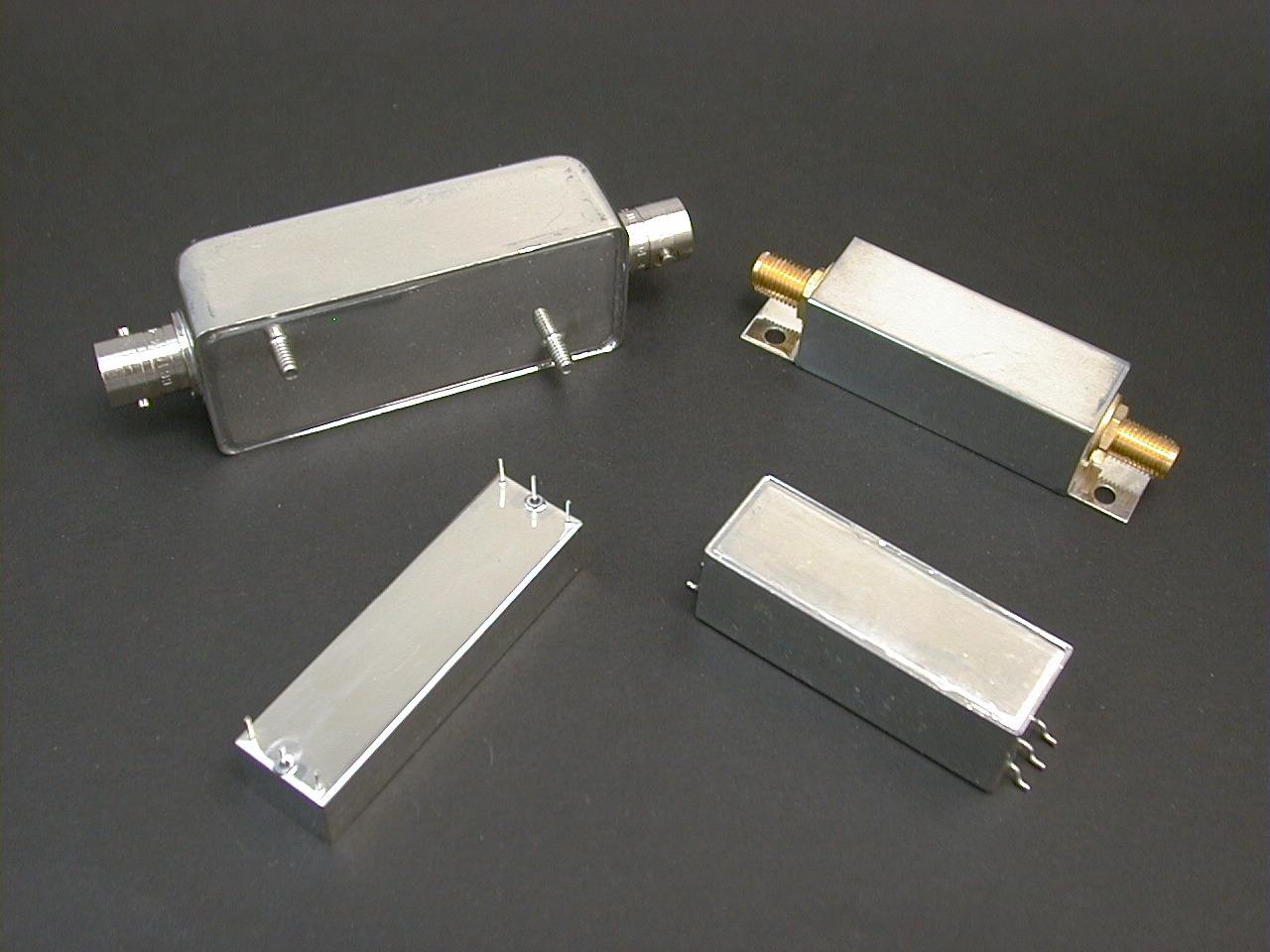

Case

Various (download the pdf sheet for details)

Operating Temperature

-55 to +95°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
