FN-2162W

Name: FN-2162W - Filtronetics
SKU: FN-2162W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-2162W

Frequency

109 MHz

Insertion Loss

4.0 dB Max

Pass Bandwidth

2 MHz / 0.5 dB Max

Stop Bandwidth

±44 MHz / 60 dB Min // ±88 MHz / 80 dB Min

Ripple

0.1 dB Max

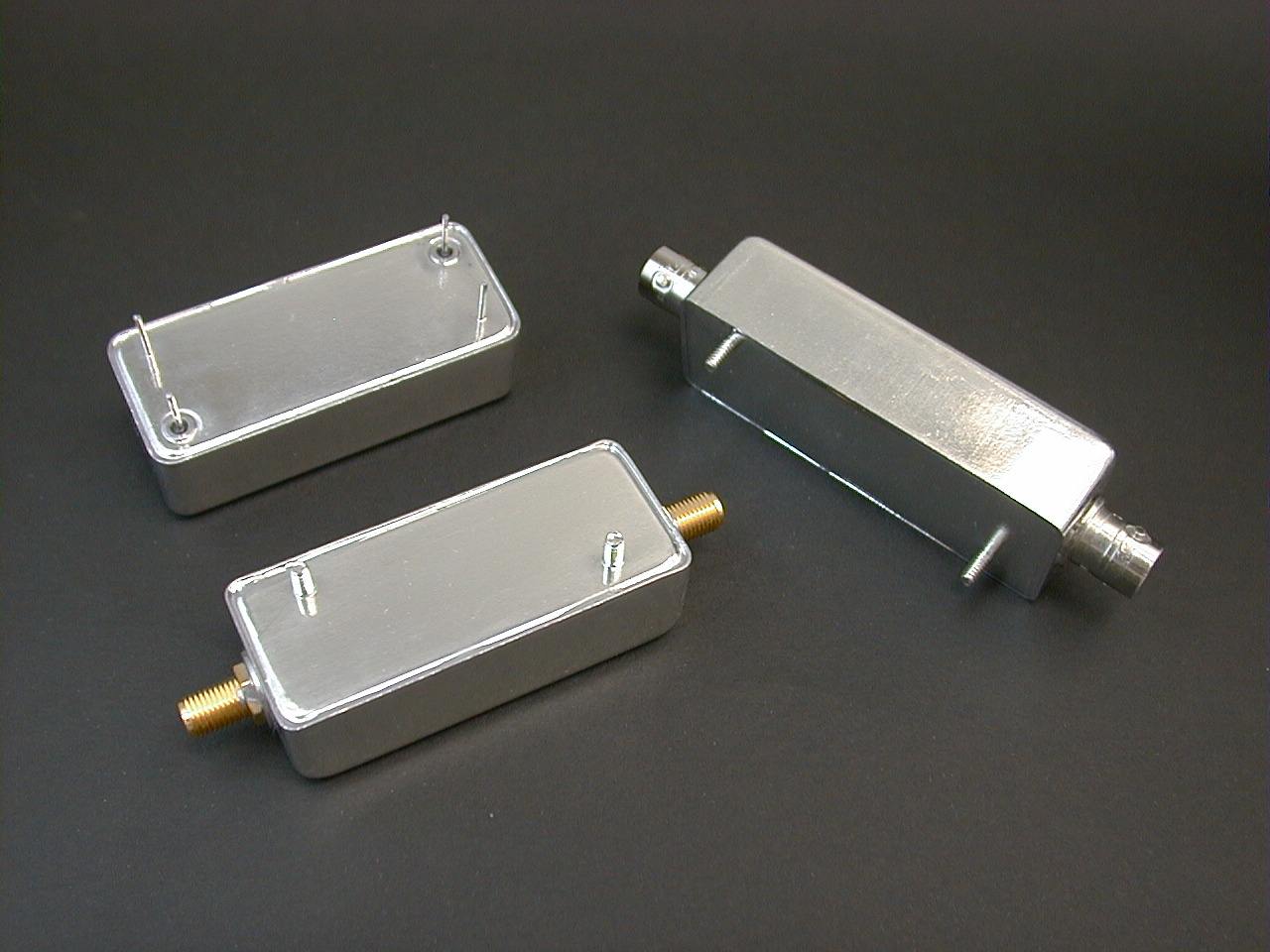

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +70°C

Poles

Impedance

75 ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
