FN-1870W

Name: FN-1870W - Filtronetics
SKU: FN-1870W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-1870W

Frequency

46.5 MHz

Insertion Loss

7.5 dB Max

Pass Bandwidth

200 KHz / 6 dB Max

Stop Bandwidth

500 KHz / 55 dB Min

Ripple

1.0 dB Max

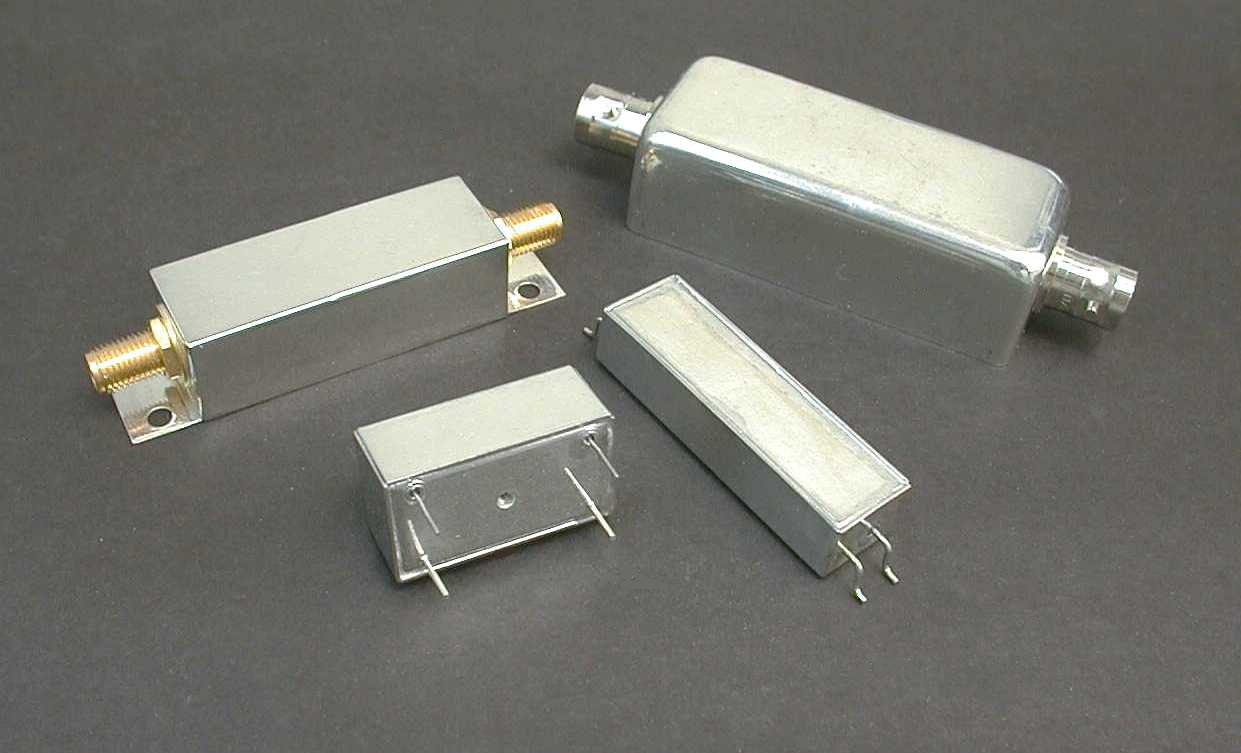

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +50°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
