FN-1804W

Name: FN-1804W - Filtronetics
SKU: FN-1804W
Availability: InStock

Bandstop Filters - Filters

Capabilities

Model Number:

FN-1804W

Frequency

120 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

±10 MHz less notch / 0.5 dB Max

Stop Bandwidth

57 KHz Max / 3 dB // 14 KHz Min / 30 dB

Ripple

0.5 dB Max

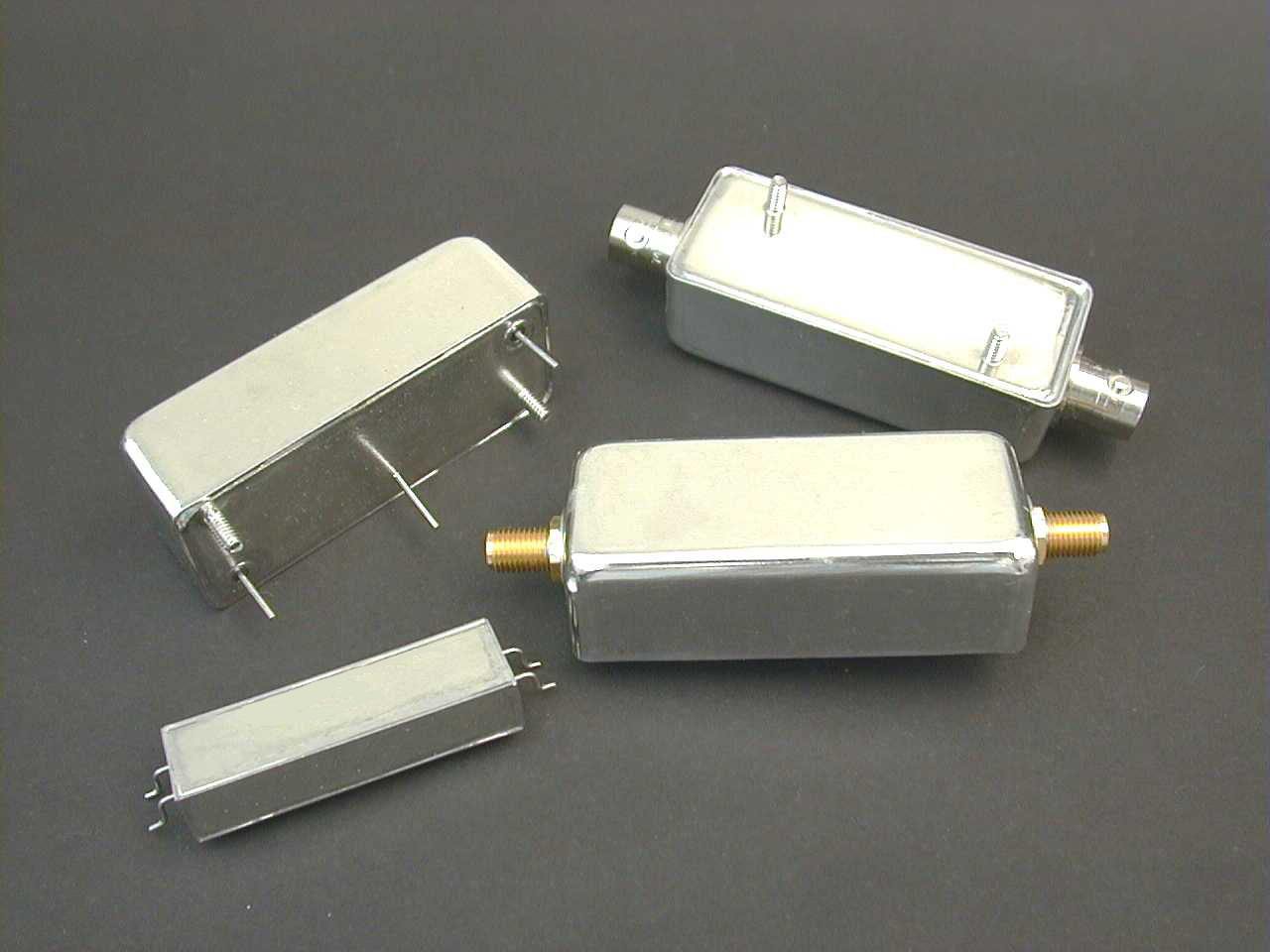

Case

Various (download the pdf sheet for details)

Operating Temperature

+10 to +35°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Band stop

Logic

Sort

Type
