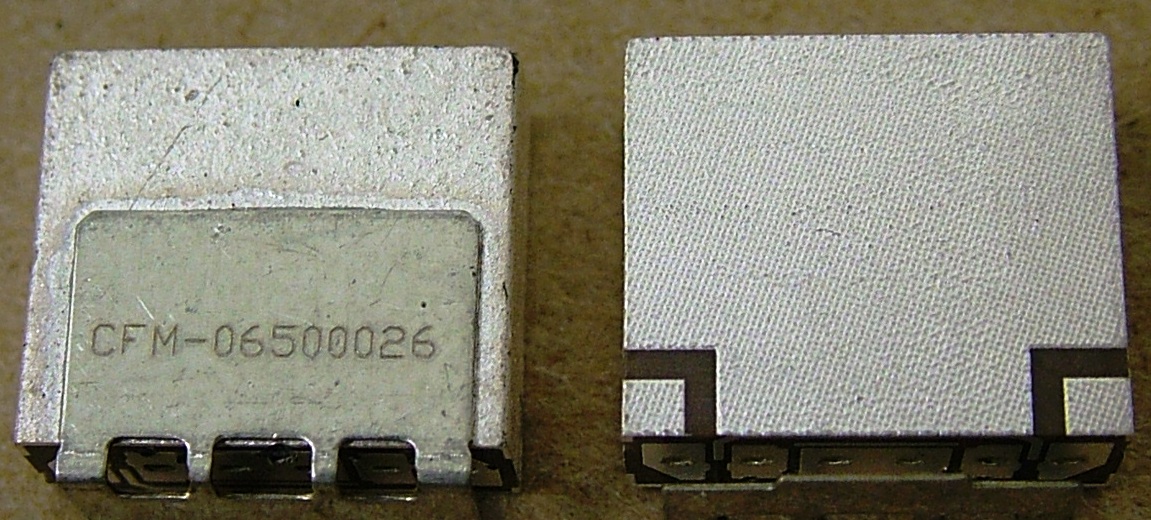

CFM-06500026

Name: CFM-06500026 - Filtronetics
SKU: CFM-06500026
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CFM-06500026

Frequency

650 MHz

Insertion Loss

6.3 dB Max in BW

Pass Bandwidth

649 ~ 651 MHz / 1 dB Max

Stop Bandwidth

At 639 MHz / 40 dB Min // At 661 MHz / 40 dB Min

Ripple

0.8 dB Max in BW

Case

13.0 X 13.0 X 4.95 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
