Frequency range:
Bandwidth:
Standard Frequencies:
Types:
Transfer Functions:
Poles:
Packages:
Power:
Applications:
0 products found.
Model Number
Frequency
Pass Bandwidth
Stop Bandwidth
Insertion Loss
Ripple
Case
Frequency
276.48 MHz
Pass Bandwidth
±4.0 MHz / 1.0 dB Max
Stop Bandwidth
35 MHz / 50 dB Min
Insertion Loss
5.0 dB Max in Passband
Ripple
1.0 dB Max in Pass Band
Case
38.0 x 36.5 x 7.5mm (SMD)
Frequency
310.0 MHz
Pass Bandwidth
±5.0 MHz / 3.0 dB Max
Stop Bandwidth
240 MHz / 60 dB Min // 330 MHz / 53 dB Min
Insertion Loss
3.0 dB Max at Fo
Ripple
1.0 dB Max in Pass Band
Case
38.0 x 33.5 x 7.5mm (SMD)
Frequency
310.0 MHz
Pass Bandwidth
±6.0 MHz / 3.0 dB Max
Stop Bandwidth
285 MHz / 50 dB Min // 335 MHz / 50 dB Min
Insertion Loss
3.0 dB Max at Fo
Ripple
1.0 dB Max in Pass Band
Case
38.0 x 33.5 x 7.5mm (SMD)
Frequency
336 MHz
Pass Bandwidth
±2.5 MHz / 1.0 dB Max
Stop Bandwidth
±10 MHz / 40 dB Min
Insertion Loss
4.5 dB Max at Fo 3.0 dB Max
Ripple
1.0 dB Max in Pass Band
Case
38.0 x 29.0 x 7.5 mm (SMD)
Frequency
337.92 MHz
Pass Bandwidth
±4 MHz / 1.0 dB Max
Stop Bandwidth
35 MHz / 50 dB Min
Insertion Loss
5.0 dB Max in PB
Ripple
1.0 dB Max in PB
Case
38.0 x 32.0 x 7.5 mm (SMD)
Frequency
365 MHz
Pass Bandwidth
±10 MHz / 1.5 dB Max
Stop Bandwidth
At 333 MHz / 50 dBc Min // At 397 MHz / 47 dB Min
Insertion Loss
3.0 dB Max at Fo
Ripple
0.8 dB Max in PB
Case
26.0 x 28.0 x 5.5 mm (SMD)
Frequency
425 MHz
Pass Bandwidth
60 MHz / 0.5 dB Max
Stop Bandwidth
At 355 MHz / 35 dB Min // At 495 MHz / 30 dB Min
Insertion Loss
2.2 dB Max (Fo)
Ripple
0.5 dB Max in BW
Case
38 x 17 x 7.5 mm (SMD)

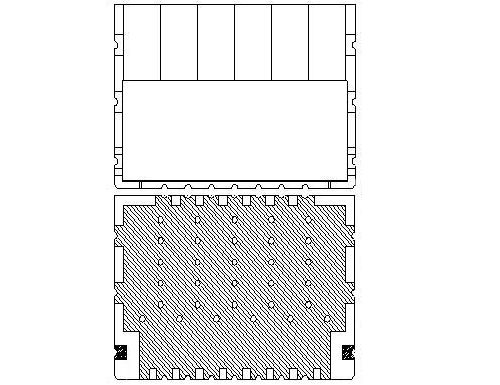

Frequency
440 MHz
Pass Bandwidth
40.0 MHz / 3 dB Max
Stop Bandwidth
DC~225MHz / 70 dB Min // 580~900MHz / 70 dB Min
Insertion Loss
2.5 dB Max at Fo
Ripple
Case
39.0 x 26.0 x 7.5mm (SMD)
Frequency
440 MHz
Pass Bandwidth
80 MHz / 3.0 dB Max
Stop Bandwidth
DC ~ 225 MHz / 70 dB Min // 580 ~ 900 MHz / 70 dB Min
Insertion Loss
2.5 dB Max at Fo
Ripple
Case
39.0 x 26.0 x 7.5 mm (SMD)
Frequency
546 MHz
Pass Bandwidth
26 MHz / 1.5 dBc Max
Stop Bandwidth
At DC~508 MHz / 60 dBc Min // @ 520 MHz / 30 dBc Min // @ 572 MHz / 30 dBc Min // @ 588~1120 MHz / 60 dBc Min
Insertion Loss
3.0 dB Max @ Fo
Ripple
1.0 dB Max @ Fo ±9 MHz
Case
38.5 x 20.5 x 8.0 mm (SMD)
Frequency
565 MHz
Pass Bandwidth
26 MHz / 1.5 dBc Max
Stop Bandwidth
At DC~527 MHz / 60 dBc Min // @ 531 MHz / 30 dBc Min // @ 591 MHz / 30 dBc Min // @ 607~1200 MHz / 60 dBc Min
Insertion Loss
3.0 dB Max @ Fo
Ripple
1.0 dB Max @ Fo ±9 MHz
Case
38.0 x 20.0 x 8.0 mm (SMD)
Frequency
600 MHz
Pass Bandwidth
580 ~ 620 MHz / 1.2 dB Max
Stop Bandwidth
At 540 MHz / 55 dB Min // At 660 MHz / 45 dB Min
Insertion Loss
2.8 dB Max at Fo
Ripple
1.0 dB Max
Case
26.0 x 19.5 x 5.5 mm (SMD)
Frequency
800 MHz
Pass Bandwidth
Fo ±18 MHz / 0.5 dB Max // 50 MHz / 3 dB Max
Stop Bandwidth
At 714 MHz / 55 dB Min // At 766 MHz / 4 dB Min // At 870 MHz / 45 dB Min // At 958 MHz / 65 dB Min
Insertion Loss
3.5 dB Max at Fo
Ripple
1.0 dB Max in PB
Case
38.0 x 18.5 x 8.0 mm (SMD)
Frequency
800 MHz
Pass Bandwidth
40 MHz / 3 dB Max
Stop Bandwidth
At 700 MHz / 70 dBc Min // At 900 MHz / 70 dBc Min
Insertion Loss
3.0 dB Max at Fo
Ripple
Case
25.4 x 15 x 5.5 mm (SMD)
Frequency
810 MHz
Pass Bandwidth
3.5 MHz / 3.0 dB Max
Stop Bandwidth
DC~786 MHz / 55 dB Min // 882~1069 MHz / 50 dB Min
Insertion Loss
5.5 dB Max (Fo)
Ripple
0.5 dB Max in BW
Case
38 x 17 x 7.0 mm (SMD)
Frequency
850 MHz
Pass Bandwidth
25 MHz / 1.0 dB Max
Stop Bandwidth
At 800 MHz / 55 dB Min // At 900 MHz / 50 dB Min
Insertion Loss
3.2 dB Max in PB
Ripple
Case
26.5 x 16 x 5.5 mm (SMD)
