CF-03100106

Name: CF-03100106 - Filtronetics
SKU: CF-03100106
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-03100106

Frequency

310.0 MHz

Insertion Loss

3.0 dB Max at Fo

Pass Bandwidth

±5.0 MHz / 3.0 dB Max

Stop Bandwidth

240 MHz / 60 dB Min // 330 MHz / 53 dB Min

Ripple

1.0 dB Max in Pass Band

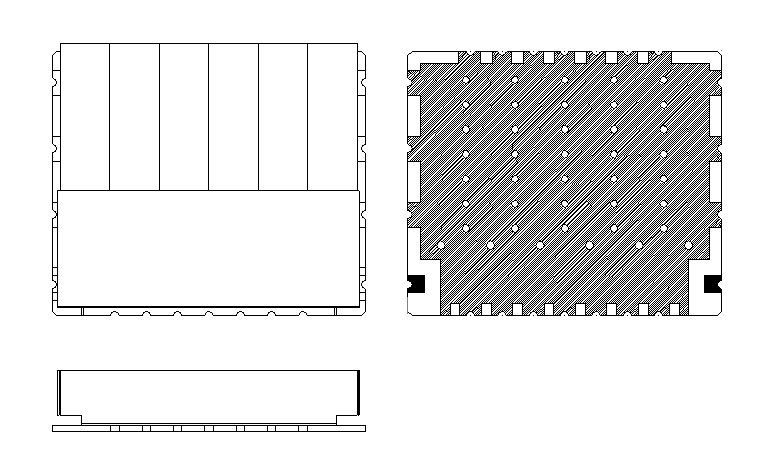

Case

38.0 x 33.5 x 7.5mm (SMD)

Operating Temperature

-35 to +75°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
