Frequency range:
Bandwidth:
Standard Frequencies:
Types:
Transfer Functions:
Poles:
Packages:
Power:
Applications:
0 products found.
Model Number
Frequency
Pass Bandwidth
Stop Bandwidth
Insertion Loss
Ripple
Case
Frequency
245 MHz
Pass Bandwidth
50 MHz / 1 dB Max
Stop Bandwidth
±84 MHz / 15 dB Min
Insertion Loss
2 dB Max
Ripple
1 dB Max
Case
1.00 x 0.50 x 0.20 in (SMD)
Frequency
151.3925 MHz
Pass Bandwidth
30 KHz / 3 dBc Max
Stop Bandwidth
100 KHz / 40 dBc Min
Insertion Loss
6 dB Max
Ripple
Case
Various (download the pdf sheet for details)
Frequency
5 MHz
Pass Bandwidth
3 KHz / 3 dB
Stop Bandwidth
±25 KHz / >60 dB // ±40 KHz / >80 dB
Insertion Loss
<4 dB
Ripple
< 0.5 dB
Case
40 mm x 19 mm x 14 mm
Frequency
5 MHz
Pass Bandwidth
3 KHz / 3 dB
Stop Bandwidth
±25 KHz / >60 dB // ±40 KHz / >80 dB
Insertion Loss
<4 dB
Ripple
< 0.5 dB
Case
40 mm x 19 mm x 14 mm
Frequency
5 MHz
Pass Bandwidth
3 KHz / 3 dB
Stop Bandwidth
±25 KHz / >60 dB // ±40 KHz / >80 dB
Insertion Loss
<4 dB
Ripple
< 0.5 dB
Case
40 mm x 19 mm x 14 mm
Frequency
5 MHz
Pass Bandwidth
±200 Hz /3 dB
Stop Bandwidth
>40 dB / ±1.5 KHz // >70 dB / ±4.5 KHz
Insertion Loss
<6 dB
Ripple
<0.5 dB or better
Case
1.51 x 0.72 x 0.51 in
Frequency
5 MHz
Pass Bandwidth
±1.5 KHz/ 3 dB
Stop Bandwidth
±8 KHz / >40 dB // ±24 KHz / >80 dB
Insertion Loss
<4 dB
Ripple
< 0.5 dB
Case
40 mm x 19 mm x 14 mm
Frequency
Pass Bandwidth
Stop Bandwidth
1.9 KHz / 30 dB Min
Insertion Loss
0.5 dB Max
Ripple
0.5 dB Max
Case
Various (download the pdf sheet for details)

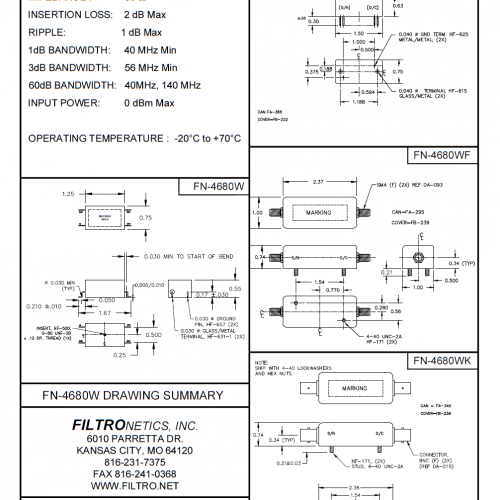

Frequency
90 MHz
Pass Bandwidth
40 MHz / 1.0 dB Max // 50 MHz / 3.0 dB Max
Stop Bandwidth
40 MHz / 60 dB Min // 140 MHz / 60 dB Min
Insertion Loss
2.0 dB Max
Ripple
1.0 dB Max in Pass Band
Case
1.25 x 0.75 x 0.55 in (SMD)

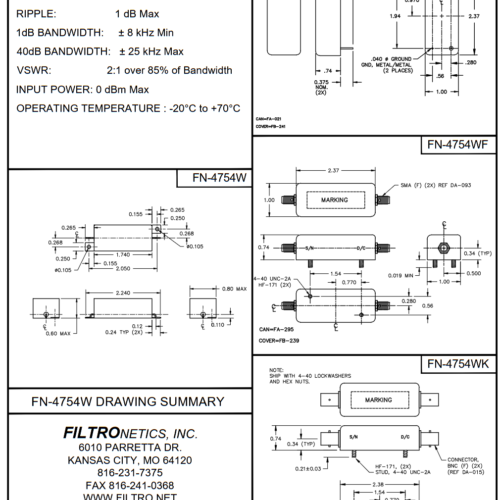

Frequency
10.7 MHz
Pass Bandwidth
±8 kHz / 1.0 dB Max
Stop Bandwidth
±25 kHz / 40 dB Min
Insertion Loss
5 dB Max
Ripple
1.0 dB Max in Pass Band
Case
Various (download the pdf sheet for details)
Frequency
Pass Bandwidth
Stop Bandwidth
6.2 MHz / 30 dB Min
Insertion Loss
1.0 dB Max
Ripple
0.2 dB Max
Case
Various (download the pdf sheet for details)
Frequency
Pass Bandwidth
Stop Bandwidth
25 MHz / 40 dB Min
Insertion Loss
1.0 dB Max
Ripple
0.4 dB Max
Case
Various (download the pdf sheet for details)
Frequency
Pass Bandwidth
Stop Bandwidth
'@ 4880~5000 MHz / 100 dB Min (for LOW) // @ 4400~4520 MHz / 100 dB Min (for HIGH)
Insertion Loss
1.0 dB Max
Ripple
0.5 dB Max
Case
150.0 x 150 x 17.0 mm (SMA)
Frequency
3750 MHz
Pass Bandwidth
200 MHz / 2 dB Max
Stop Bandwidth
'@ 3450 MHz / 60 dB Min // @ 4050 MHz / 60 dB Min
Insertion Loss
1.0 dB Max
Ripple
Case
123 x 49 x 20 mm (SMA)
Frequency
7500 MHz
Pass Bandwidth
7000 - 8000 MHz / 3 dB Max
Stop Bandwidth
'@ 6800 MHz / 20 dB Min // @ 8200 MHz / 20 dB Min
Insertion Loss
2.0 dB Max
Ripple
0.5 dB Max
Case
118 x 45 x 14 mm (SMA)
Frequency
7500 MHz
Pass Bandwidth
7000 - 8000 MHz / 3 dB Max
Stop Bandwidth
'@ 6800 MHz / 30 dB Min // @ 8200 MHz / 30 dB Min
Insertion Loss
2.0 dB Max
Ripple
0.5 dB Max
Case
129 x 45 x 14 mm (SMA)
