FN-595W

Name: FN-595W - Filtronetics
SKU: FN-595W
Availability: InStock

Filters - Lowpass Filters

Capabilities

Model Number:

FN-595W

Frequency

Insertion Loss

1.0 dB Max

Pass Bandwidth

Stop Bandwidth

6.2 MHz / 30 dB Min

Ripple

0.2 dB Max

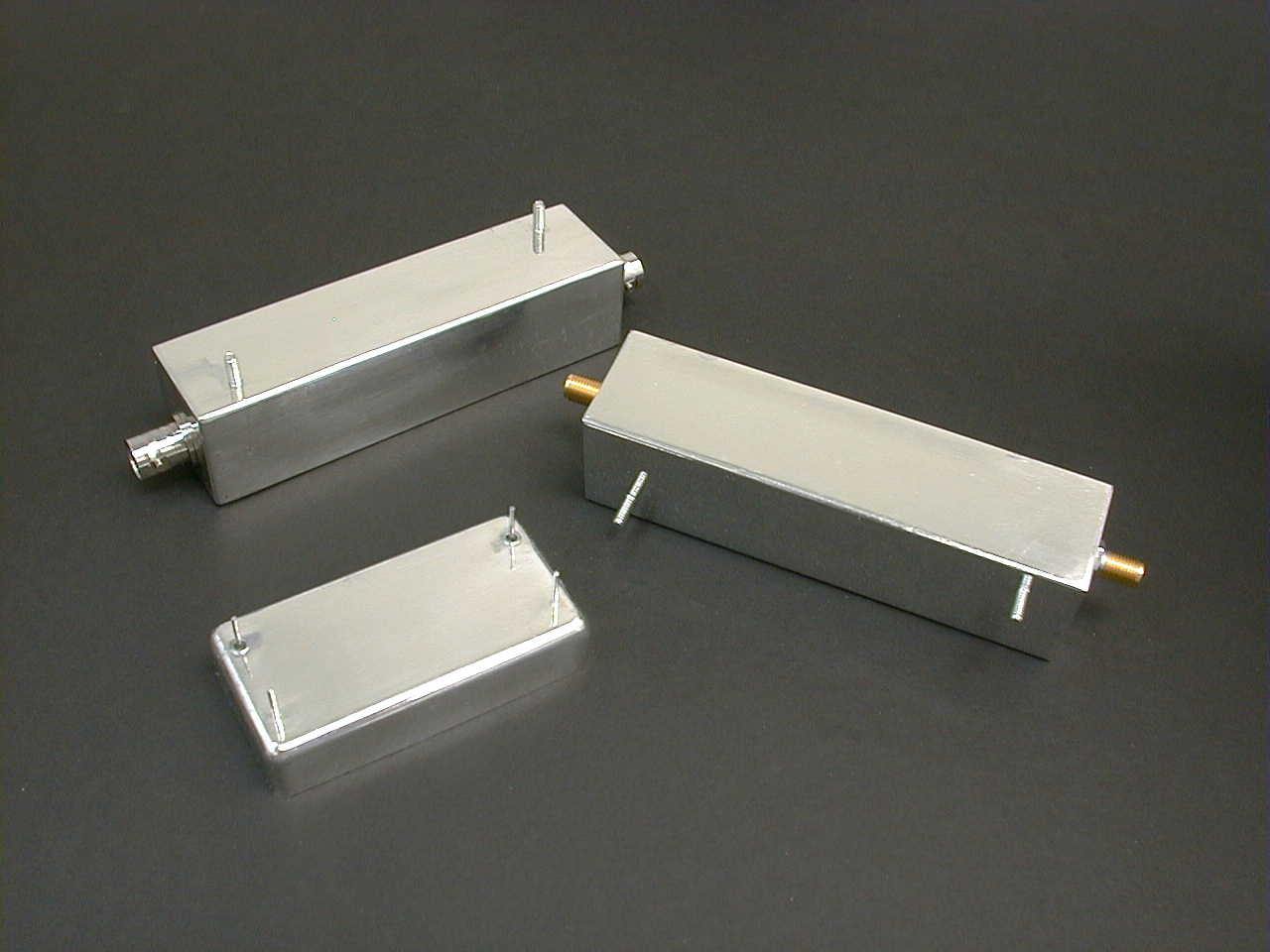

Case

Various (download the pdf sheet for details)

Operating Temperature

-20 to +70°C

Poles

Impedance

75 ohms

Cutoff Frequency

5.25 MHz / 1 dB Max

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Lowpass

Logic

Sort

Type
