SF881250

Name: SF881250 - Filtronetics
SKU: SF8810250
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

SF881250

Frequency

881.5 MHz

Insertion Loss

3.0 dB Max within 869 MHz ~ 894 MHz

Pass Bandwidth

25 MHz / 2 dB Max

Stop Bandwidth

Various (download the pdf sheet for details)

Ripple

1.8 dB Max within Pass-band 869 MHz ~ 894 MHz

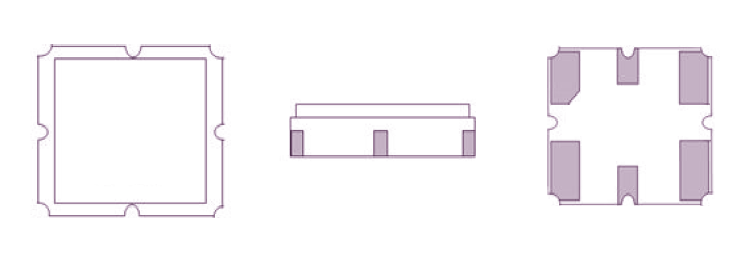

Case

3.13 x 3.13 x 1.5 mm (SMD)

Operating Temperature

-30 to +80°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
