SF2250100

Name: SF2250100 - Filtronetics
SKU: SF2250100
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

SF2250100

Frequency

2250 MHz

Insertion Loss

4.5 dB Max / 3.2 dB Typical

Pass Bandwidth

100 MHz / 3dB Nomial

Stop Bandwidth

DC ~ 2160MHz / 25 dB Min // 2340 ~ 4000 MHz / 25 dB Min

Ripple

3dB Max

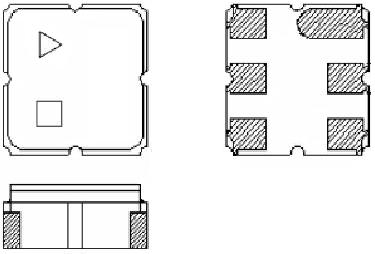

Case

3.0 x 3.0 x 1.3 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
