SF1323030

Name: SF1323030 - Filtronetics
SKU: SF1323030
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

SF1323030

Frequency

1323 MHz

Insertion Loss

2.8 dB Max

Pass Bandwidth

1308~1338 MHz / 3.0 dB Max

Stop Bandwidth

1000~1200 MHz / 30 dB Min // 1200~1275 MHz / 35 dB Min // 1355~1365 MHz / 33 dB Min // 1365~1600 MHz / 35 dB Mim

Ripple

0.5 dB Max

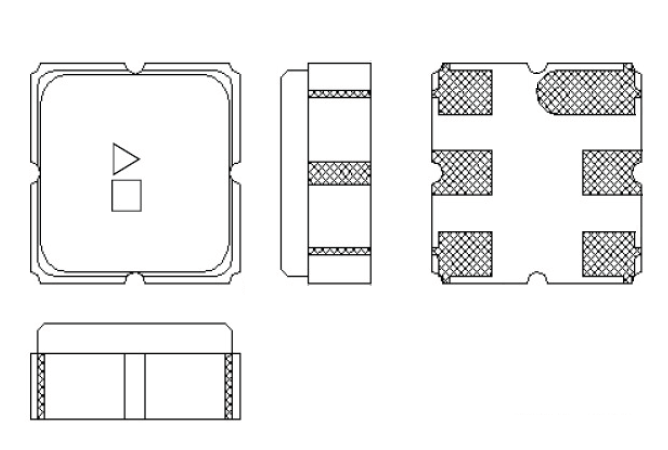

Case

3.0 x 3.0 x 1.3 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
