SF1200052

Name: SF1200052 - Filtronetics
SKU: SF1200052
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

SF1200052

Frequency

1200 MHz

Insertion Loss

4.0 dB Max

Pass Bandwidth

38.0 MHz /2.0 dB Min

Stop Bandwidth

Fc-120MHz / 35.0 dB Min // 1100 MHz / 45.0 dB Min // 1300 MHz / 40.0 dB Min // Fc+120MHz / 35.0 dB Min

Ripple

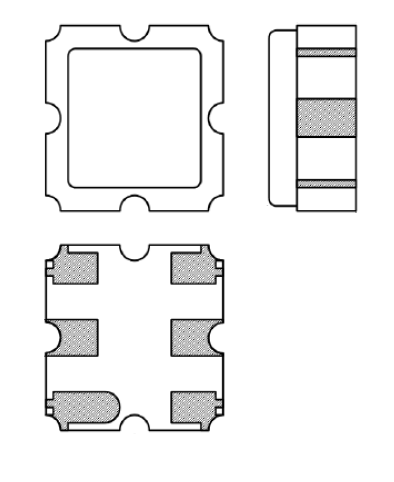

Case

3.0 x 3.0 x 1.4 mm (SMD)

Operating Temperature

-55 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
