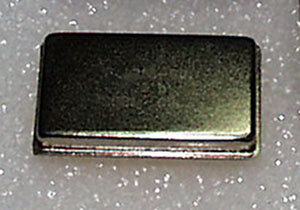

SF070042A

Name: SF070042A - Filtronetics
SKU: SF070042A
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

SF070042A

Frequency

70.00 MHz

Insertion Loss

24.0 dB Max

Pass Bandwidth

3.80 MHz / 1 dB Typ // 4.20 MHz / 3 dB Max

Stop Bandwidth

5.60 MHz / 40 dB Min

Ripple

0.5 dB Max at Passband

Case

35.0 x 12.5 x 5.0 mm (THRU HOLE)

Operating Temperature

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
