SF05000008

Name: SF05000008 - Filtronetics
SKU: SF05000008
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

SF05000008

Frequency

500 MHz

Insertion Loss

3.8 dB Max

Pass Bandwidth

800 KHz / 3 dB Max

Stop Bandwidth

10.00-498.40 MHz / 22 dBc Min // 498.40-499.00 MHz / 15 dBc Min // 501.00-501.80 MHz / 15 dBc Min // 501.80-1000.00 MHz / 23 dBc Min

Ripple

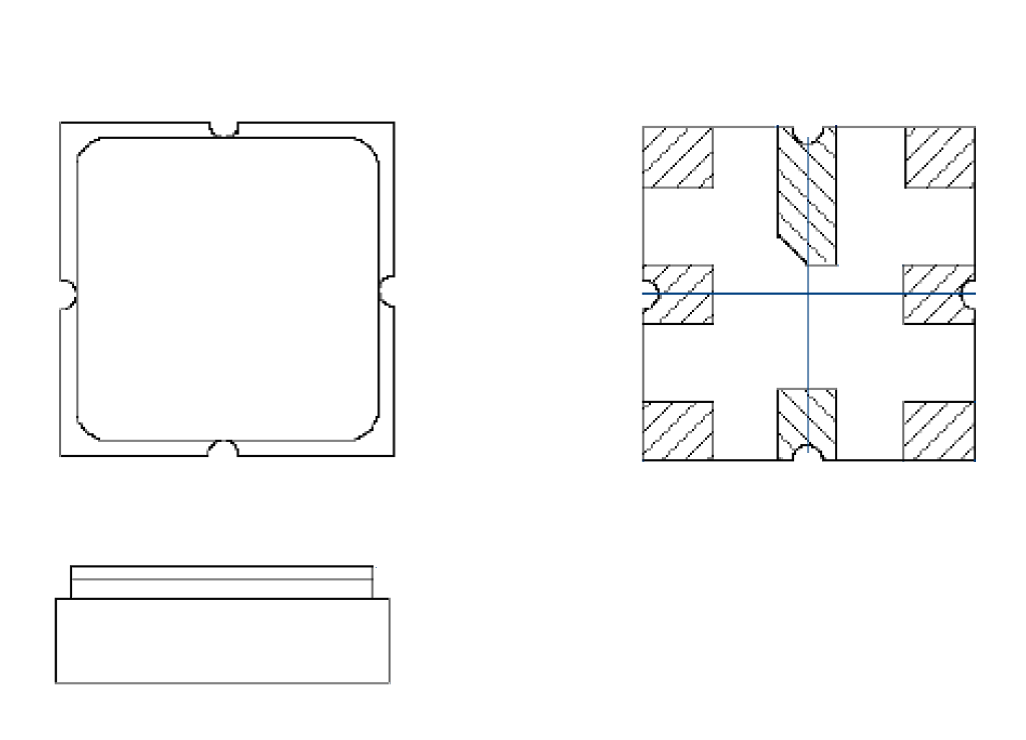

Case

3.0 x 3.0 x 1.1 mm (SMD)

Operating Temperature

-40 to +125°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
