SF0070003E

Name: SF0070003E - Filtronetics
SKU: SF0070003E
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

SF0070003E

Frequency

70.00 MHz

Insertion Loss

24 dB Max AT 70 MHz Typical

Pass Bandwidth

3.35 MHz min / 3dB Max

Stop Bandwidth

45 dB Min at70 MHz

Ripple

1.0 dB max at 70 MHz

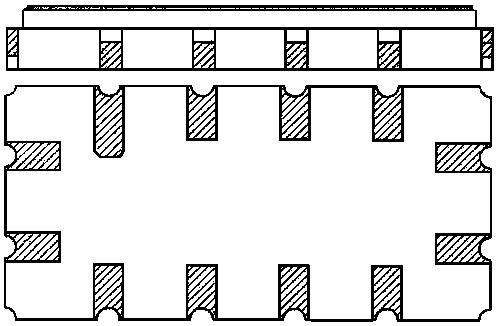

Case

13.3 mm 6.50 mm 2.0 mm (SMD)

Operating Temperature

-20°C

Poles

Impedance

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
