M130SAM

Name: M130SAM - Filtronetics
SKU: M130SAM
Availability: InStock

Bandpass Filters|Filters - Filters - mini-monolithics

RoHS Compliant

Capabilities

Model Number:

M130SAM

Frequency

130.05 MHz

Insertion Loss

4.0 dB Max

Pass Bandwidth

±10.5 KHz / 1 dB Max

Stop Bandwidth

±50 KHz / 20 dB Min // ±100 KHz / 40 dB Min // ±200 KHz / 50 dB Min // -900 KHz / 70 dB Min

Ripple

1.0 dB Max in Pass Band

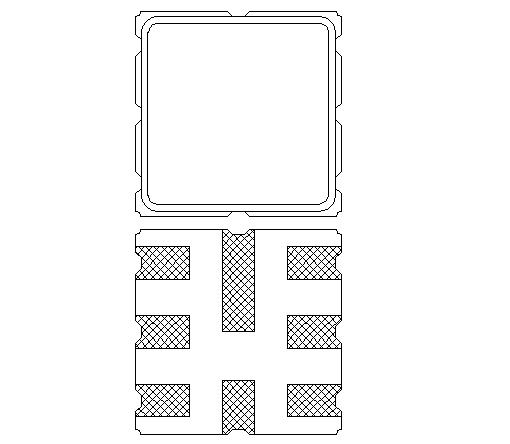

Case

3.80 x 3.80 x 1.00 mm (SMD)

Operating Temperature

-20 to +70°C

Poles

Impedance

250 ohms // -1.0 pf

Cutoff Frequency

Frequency Range

101 - 500 MHz

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
