FNP-1544

Name: FNP-1544 - Filtronetics
SKU: FNP-1544
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

FNP-1544

Frequency

1575.42 MHz

Insertion Loss

1.0 dB Max at Fo

Pass Bandwidth

Stop Bandwidth

Fc ±40.92MHz / 50 dB Min

Ripple

Fc ±8.25MHz / 0.3 dB Max // Fc ±20MHz / 1.0 dB Max

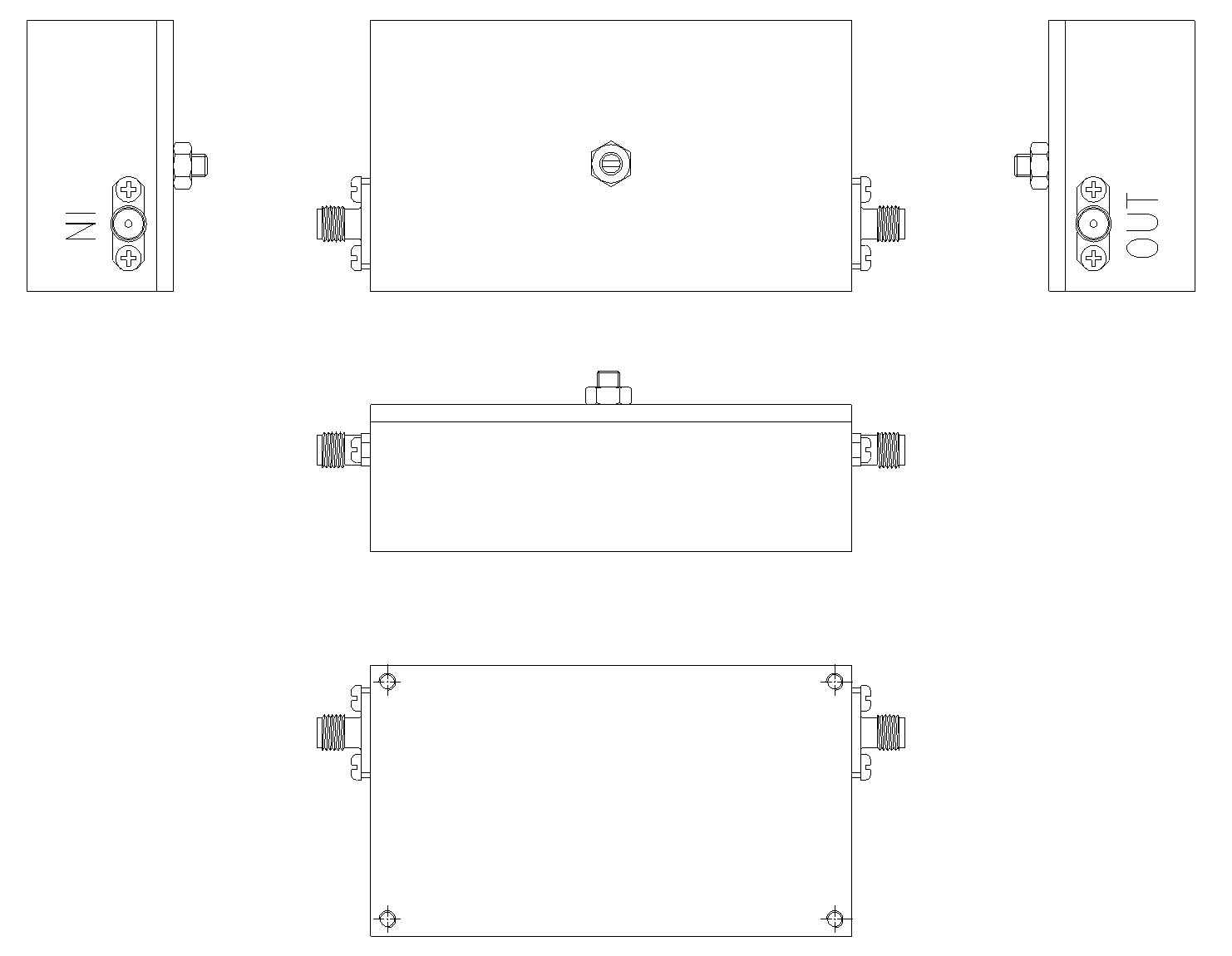

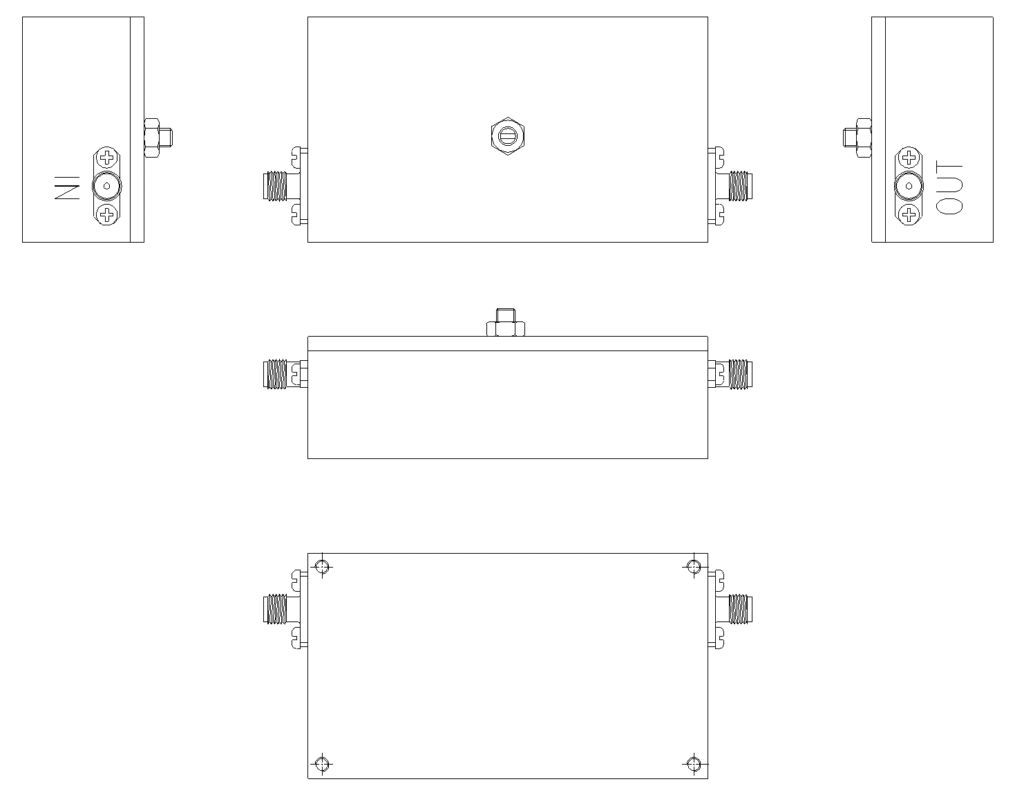

Case

85.5 x 48.0 x 32.0 mm (SMA)

Operating Temperature

+15 to +45°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
