FNP-1521

Name: FNP-1521 - Filtronetics
SKU: FNP-1521
Availability: InStock

Filters - Lowpass Filters

Capabilities

Model Number:

FNP-1521

Frequency

Insertion Loss

1.0 dB Max

Pass Bandwidth

DC~20000.0 MHz / 3.0 dB Min

Stop Bandwidth

25000 MHz / 25 dB Min // 30000~40000 MHz / 30 dB Min

Ripple

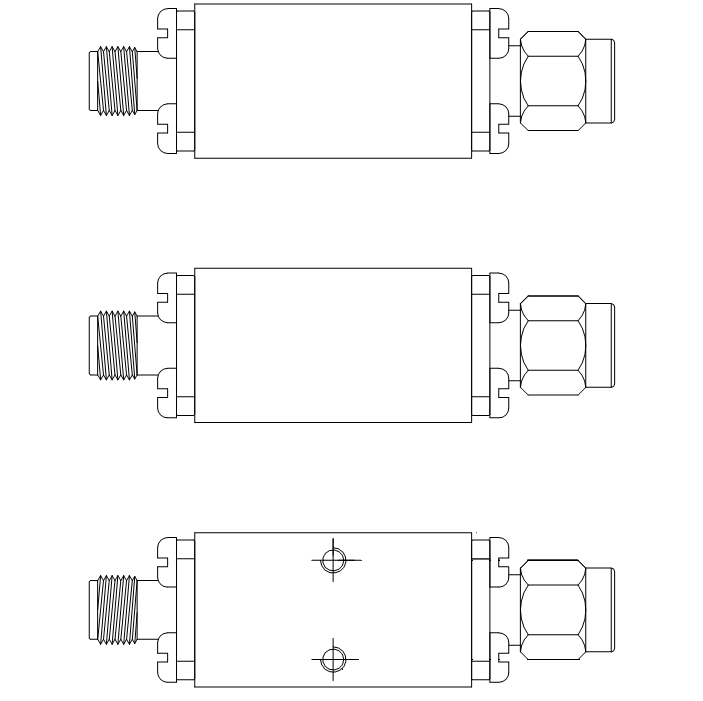

Case

25.0 x 14.0 x 14.0 mm (SMA)

Operating Temperature

-30 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

20000.0 MHz

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Lowpass

Logic

Sort

Type
