FNP-1480

Name: FNP-1480 - Filtronetics
SKU: FNP-1480
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FNP-1480

Frequency

26250 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

±750 MHz / 3.0 dB Max

Stop Bandwidth

±3400 MHz / 50 dB Min

Ripple

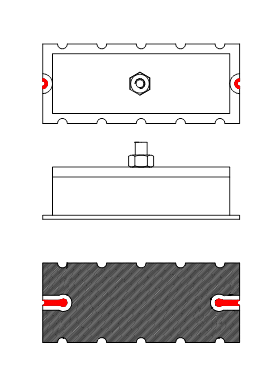

Case

40.0 x 16.0 x 14.5 mm (SMD)

Operating Temperature

-30 to +70°C

Poles

Impedance

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
