FNP-1327

Name: FNP-1327 - Filtronetics
SKU: FNP-1327
Availability: InStock

Bandstop Filters - Filters

RoHS Compliant

Capabilities

Model Number:

FNP-1327

Frequency

2250 MHz

Insertion Loss

1.0 dB Max in BW

Pass Bandwidth

2200 ~ 2300MHz / 1.0 dB Max

Stop Bandwidth

'@ 2160 MHz / 35 dB Min // @ 2340 MHz / 35 dB Min

Ripple

0.5 dB Max in BW

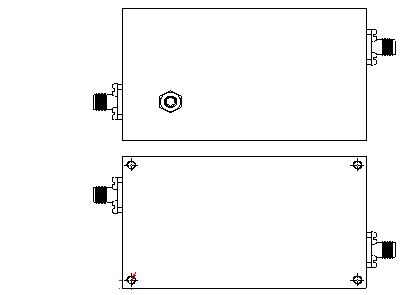

Case

81 x 48 x 33 mm (SMA (F) @ All ports)

Operating Temperature

0 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Band stop

Logic

Sort

Type
