FN-503W

Name: FN-503W - Filtronetics
SKU: FN-503W
Availability: InStock

Bandstop Filters - Filters

Capabilities

Model Number:

FN-503W

Frequency

1.304 MHz

Insertion Loss

0.5 dB Max

Pass Bandwidth

220 KHz / 3 dB Max

Stop Bandwidth

40 KHz / 60 dB Min

Ripple

0.5 dB Max

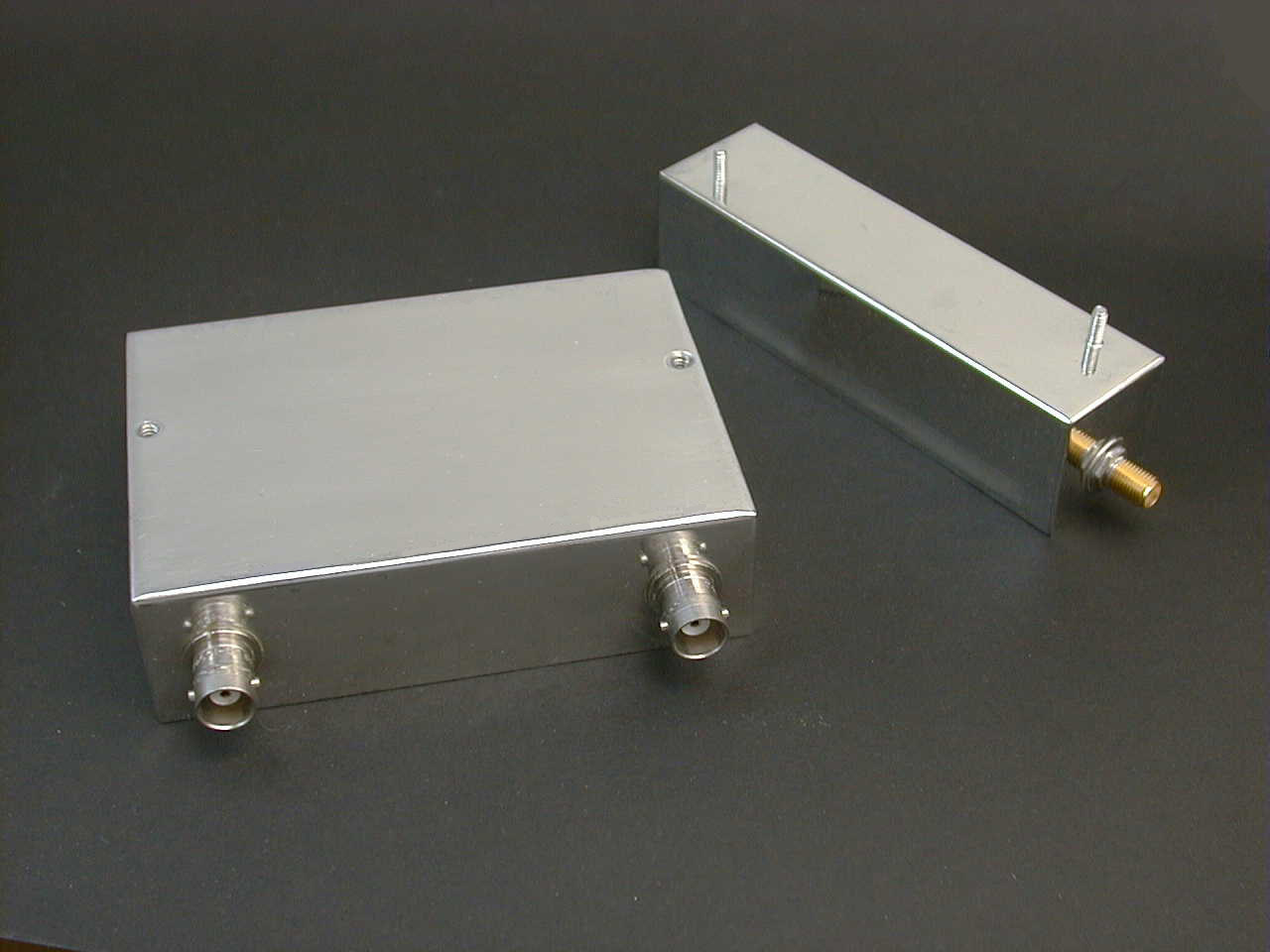

Case

Various (download the pdf sheet for details)

Operating Temperature

+15 to +35°C

Poles

Impedance

75 ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Band stop

Logic

Sort

Type
