FN-4762W

Name: FN-4762W - Filtronetics
SKU: FN-4762W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4762W

Frequency

5.25 kHz

Insertion Loss

7.5 dB Max

Pass Bandwidth

±100 Hz / 3.0 dB Max

Stop Bandwidth

±500 Hz / 20 dB Min

Ripple

0.5 dB Max

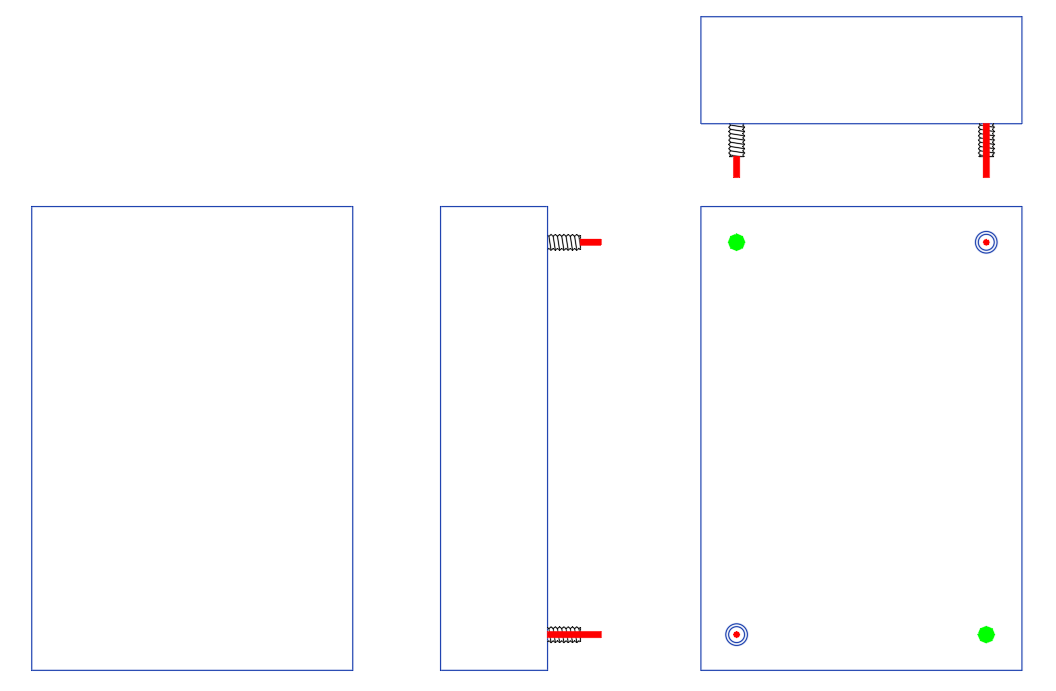

Case

3.25 x 2.25 x 0.75 in (P.C.)

Operating Temperature

Room or Advise

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
