FN-4755W

Name: FN-4755W - Filtronetics
SKU: FN-4755W
Availability: InStock

Filters - Lowpass Filters

Capabilities

Model Number:

FN-4755W

Frequency

Insertion Loss

.75 dB Max

Pass Bandwidth

900 ~2150 MHz / 3 dB Max

Stop Bandwidth

2800 ~ 3000 MHz / 60 dB Min // 3000 ~ 4000 MHz / 50 dB Min

Ripple

0.5 dB Max in BW

Case

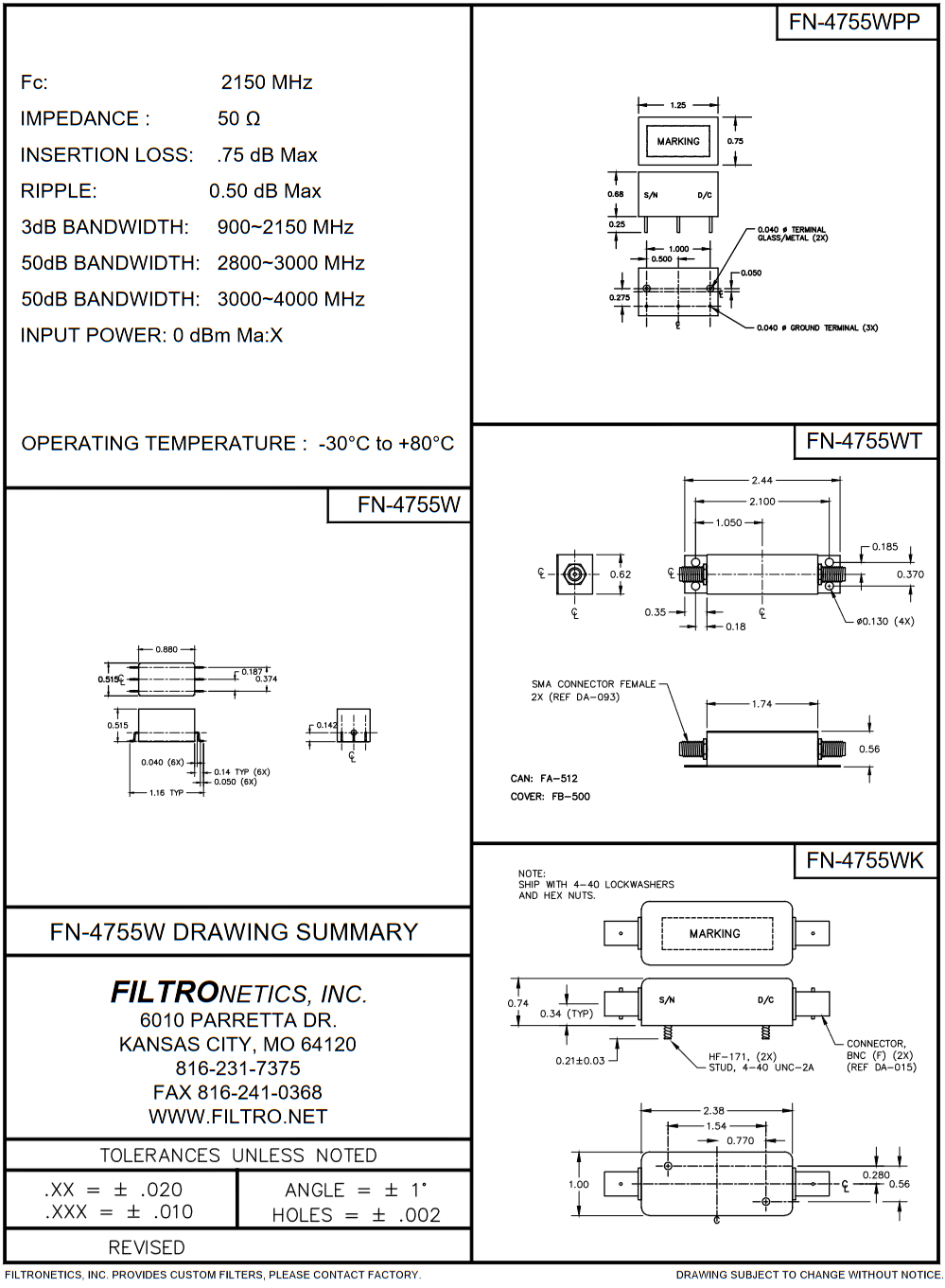

Various (download the pdf sheet for details)

Operating Temperature

-30 to +80°C

Poles

Impedance

50 Ohms

Cutoff Frequency

2150 MHz

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Lowpass

Logic

Sort

Type
