FN-4749W

Name: FN-4749W - Filtronetics
SKU: FN-4749W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4749W

Frequency

219.382 MHz

Insertion Loss

12.5 dB Max

Pass Bandwidth

12.5 kHz / 3 dB Max

Stop Bandwidth

40 kHz / 40 dB Min // 50 KHz / 70 dB Min

Ripple

0 dB Typ

Case

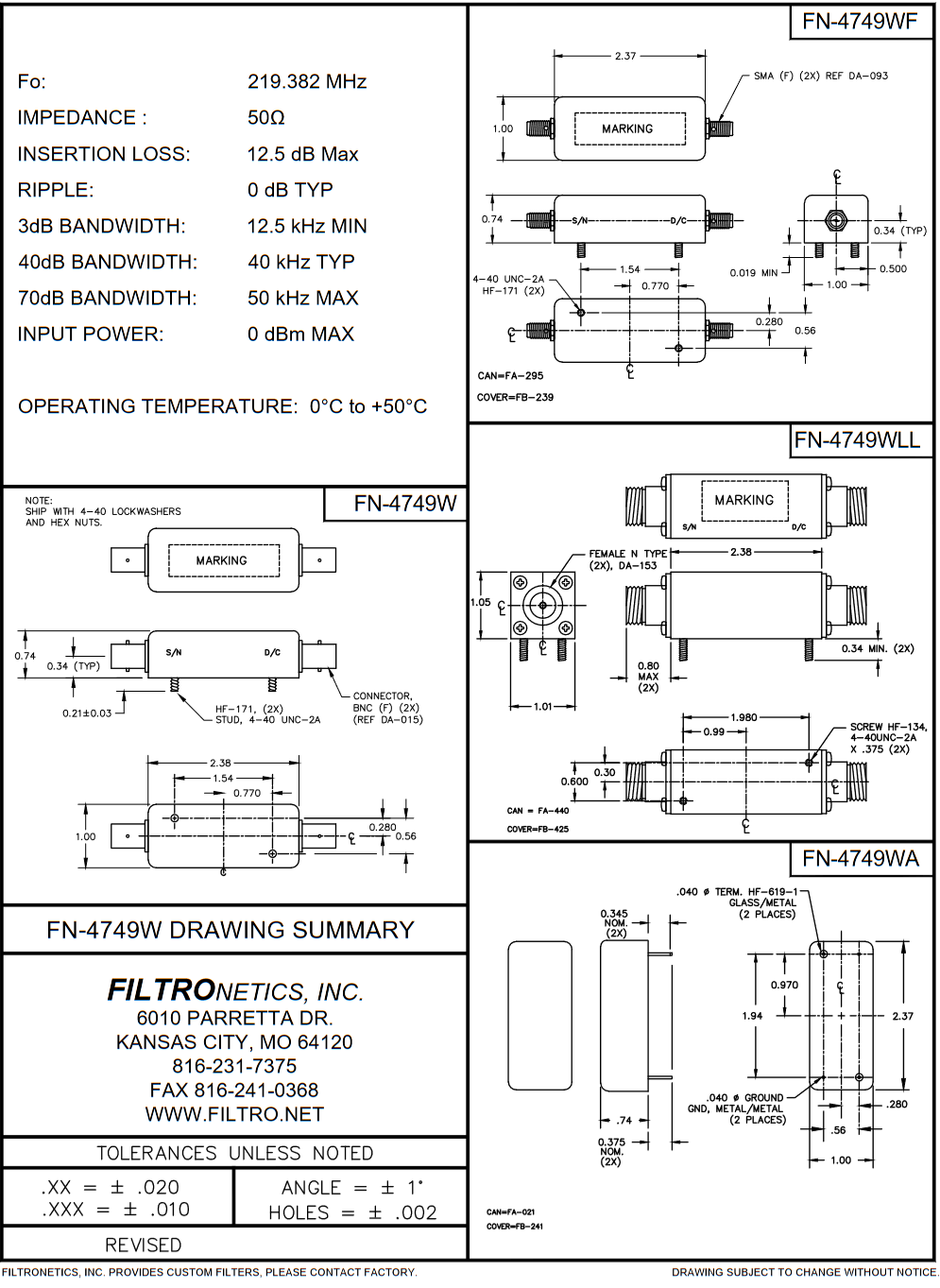

Various (download the pdf sheet for details)

Operating Temperature

0 to +50°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
