FN-4734W

Name: FN-4734W - Filtronetics
SKU: FN-4734W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4734W

Frequency

100 MHz

Insertion Loss

10 dB Max

Pass Bandwidth

±1.5 MHz / 3.0 dB Max

Stop Bandwidth

±5 MHz / 20 dB Min

Ripple

1.0 dB Max in Pass Band

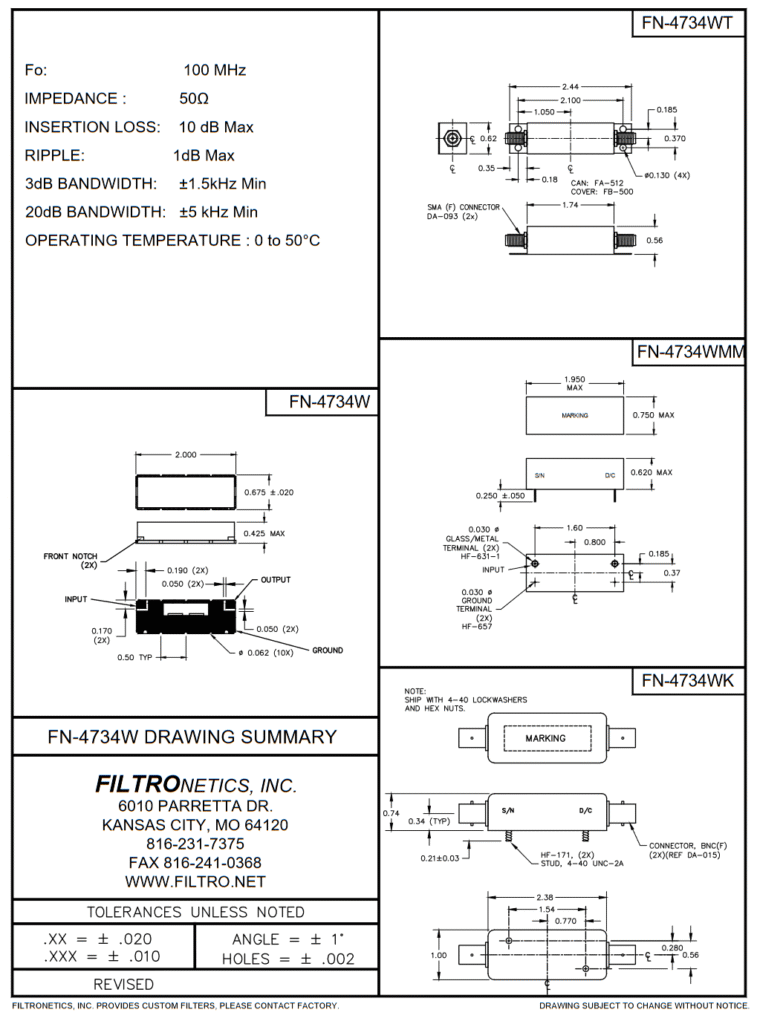

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +50°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
