FN-4731W

Name: FN-4731W - Filtronetics
SKU: FN-4731W
Availability: InStock

Bandstop Filters - Filters

Capabilities

Model Number:

FN-4731W

Frequency

74 MHz

Insertion Loss

1 dB Max

Pass Bandwidth

82 MHz~1 GHz / 3 dB Max

Stop Bandwidth

72~76 MHz / 50 dB Min

Ripple

1.0 dB Max in Pass Band

Case

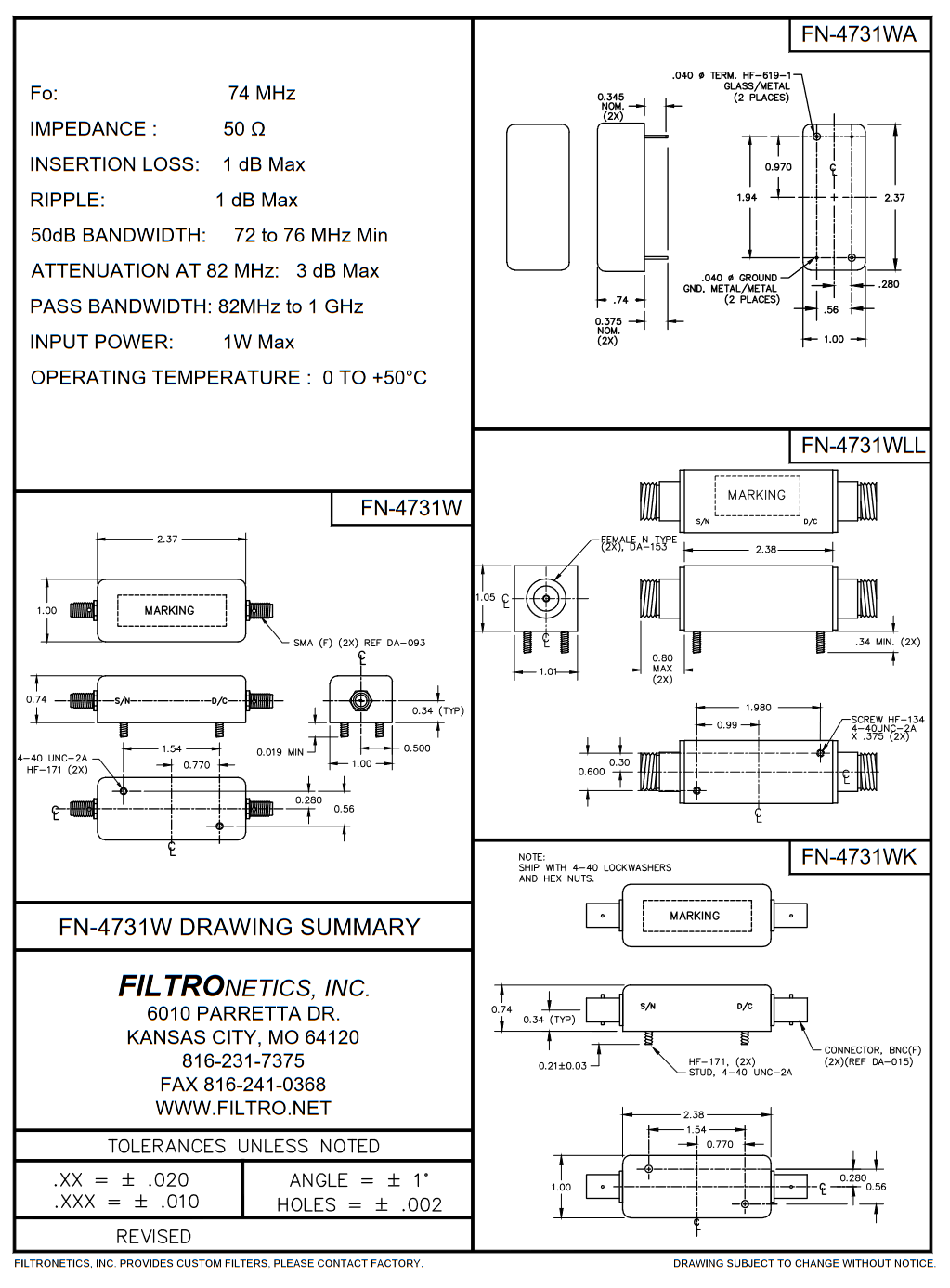

Various (download the pdf sheet for details)

Operating Temperature

0 to +50°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Band stop

Logic

Sort

Type
