FN-4708W

Name: FN-4708W - Filtronetics
SKU: FN-4708W
Availability: InStock

Filters - Lowpass Filters

Capabilities

Model Number:

FN-4708W

Frequency

Insertion Loss

1.0 dB Max

Pass Bandwidth

DC~81MHz / 3 dB Min

Stop Bandwidth

96 MHz / 40 dB Min

Ripple

Case

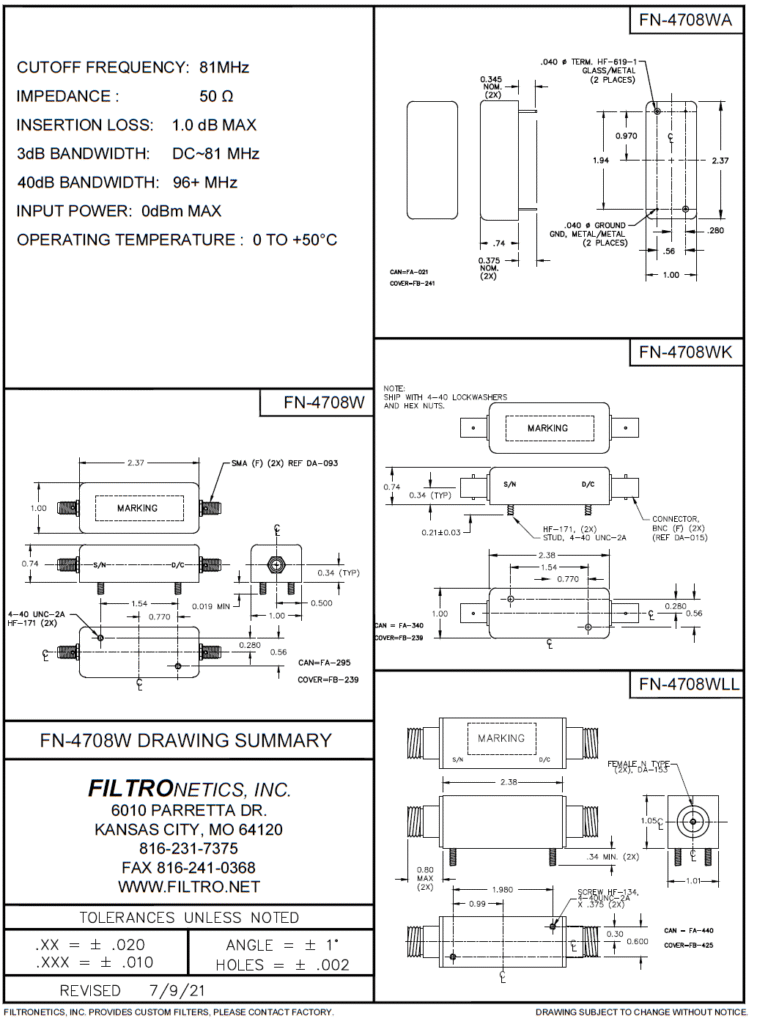

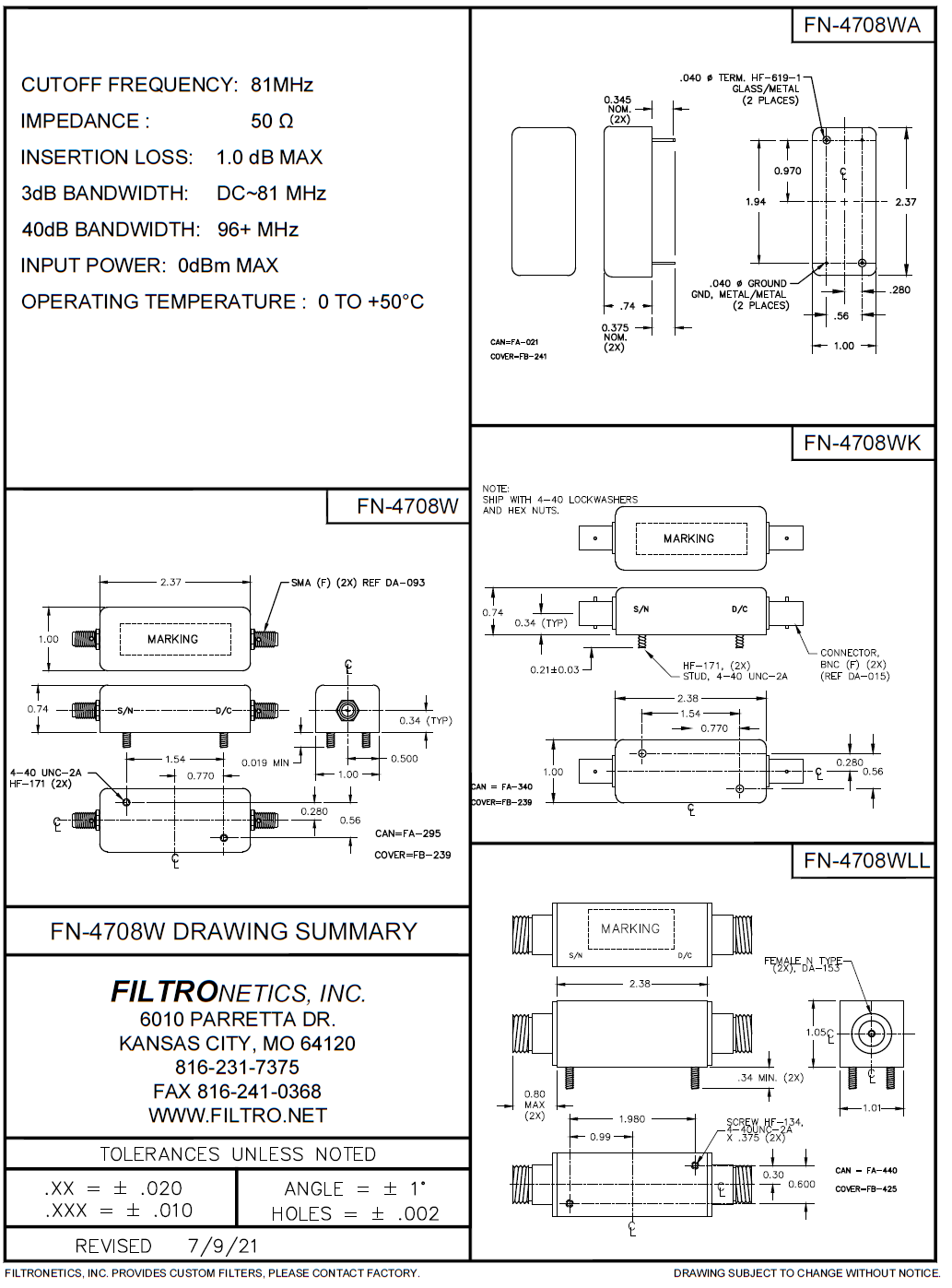

Various (download the pdf sheet for details)

Operating Temperature

0 to +50°C

Poles

Impedance

50 Ohms

Cutoff Frequency

81 MHz

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Lowpass

Logic

Sort

Type
